1423969
Official DistributorSKU
PHX1423969
MPN
QPD P3PE2,5 9-14 GYGY
Weight
0.05 kg
Series QPD-P

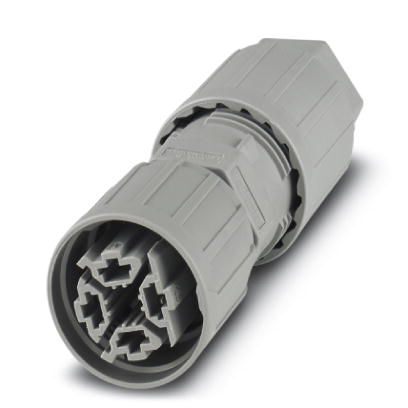

QPD P3PE2,5 9-14 GYGY - Connector
Connector, product family: QPD, connection method: IDC connection, number of positions: 3+PE, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, gray, with QUICKON nut, coding: Coding profile, external cable diameter: 9 mm ... 14 mm
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Easy maintenance – the connectors enable fast device replacement and preassembled cables simplify startup
Technical Specifications
General
| Type | QPD 4x2,5 |
| Color | gray |
| Locking Type | Screw locking |
| Connection technology | QUICKON connection |
| Connection Method | IDC connection |
| Number of Positions | 4 |
| Connection profile | 3+PE |
| Tightening torque, union nut | 7 Nm |
| Number of Connections | 4 |
| Conductor cross section flexible min. | 1 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section solid min. | 1 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 16 |
| Conductor cross section AWG max. | 14 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 2 mm ... 3.6 mm |
| External Cable Diameter | 9 mm ... 14 mm |
| Stripping length of the sheath | 60 mm (Branch line) |
| Stripping length of the sheath | 60 mm (Master cable) |
| Position marking | 1, 2, 3, PE |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
Electrical characteristics
| Nominal current IN | 20 A |
| Nominal voltage UN | 690 V AC |
| Nominal voltage UN | 690 V DC |
| Rated current | 20 A |
| Rated voltage (III/3) | 690 V |
| Rated voltage (III/2) | 690 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (II/2) | 6 kV |
Mechanical characteristics
| QUICKON connectability | max. 10 |
| Insertion/withdrawal cycles | max. 50 |
| Category of shock impact | IK07 |
Material data
| Contact Material | Cu |
| Contact surface material | silver-plated |
| Contact carrier material | PA |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Degree of pollution | 3 |
Standards and Regulations
| Category of shock impact | IK07 |
| Halogen-free | yes |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
Why Proax for Phoenix Contact 1423969?
Proax is an authorized distributor of Phoenix Contact 1423969 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
