Name: 1418629
Brand: Phoenix Contact
SKU: PHX1418629
Price: 20.7600 CAD
Availability: BackOrder

Official Distributor

By Phoenix Contact

SKU

MPN

SACC-CIP-M12FS-4P SMD SH-SP

Weight

0.007 kg

Series SACC-CIP-M

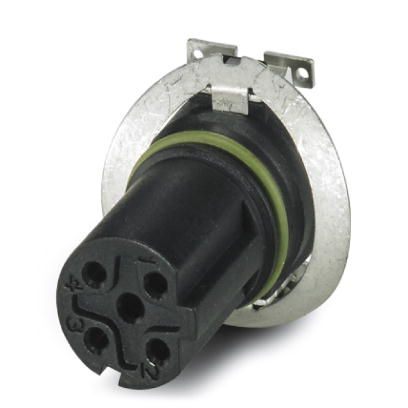

SACC-CIP-M12FS-4P SMD SH-SP - Sample set

Sample set, 4-position, Socket, straight, M12, coding: A, PCB mounting, SMD, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239195

Ambient conditions

Ambient Temperature (Operation)	-25 °C ... 105 °C (Plug / socket)
Ambient Temperature (Operation)	-40 °C ... 105 °C (without mechanical actuation)
Ambient Temperature (Operation)	-25 °C ... 105 °C (Plug / socket)
Degree of Protection	IP67 (correctly plugged in and locked)
Degree of Protection	IP65 (not plugged in, by means of additional O-ring seal with device)

General

Note	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Rated current at 40°C	4 A
Rated voltage	250 V
Rated surge voltage	2.5 kV
Number of Positions	4
Insulation resistance	≥ 100 MΩ
Coding	A - standard
Standards/regulations	M12 connector IEC 61076-2-101 In line with
Overvoltage category	II
Degree of pollution	3
Connection Method	SMD
Insertion/withdrawal cycles	> 100
Mounting Type	PCB mounting

Material

Flammability rating according to UL 94	V0
Contact Material	CuZn
Contact surface material	Au
Contact carrier material	PA
Sealing material	FKM

Cable

Standards/specifications

M12 connector IEC 61076-2-101 In line with

Standards and Regulations

Standards/specifications

M12 connector IEC 61076-2-101 In line with

Environmental Product Compliance

REACh SVHC	Lead 7439-92-1
China RoHS	Environmentally Friendly Use Period = 50 years
China RoHS	For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
