1418082
Official DistributorSKU
PHX1418082

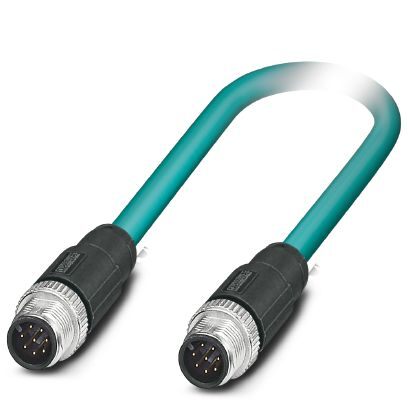

Network cable - NBC-M12MS/15,0-94B/M12MS US
Network cable, Ethernet CAT5 (1 Gbps), 8-position, PUR halogen-free, water blue RAL 5021, shielded, Plug straight M12 / IP67, coding: A, on Plug straight M12 / IP67, coding: A, cable length: 15 m
Technical Specifications
Dimensions
| Length of Cable | 15 m |
Ambient conditions
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (M12 connector) |
General data
| Rated current at 40°C | 2 A |
| Rated voltage | 48 V AC |
| Rated voltage | 60 V DC |
| Number of Positions | 8 |
| Signal type/category | Ethernet CAT5 (on the basis of IEC 11801), 1 Gbps |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Contact Material | CuSn |
| Contact carrier material | TPU GF |
| Contact surface material | Ni/Au |
| Transmission characteristics (category) | CAT5 |
| Transmission Speed | 1 Gbps |
Characteristics head 1
| Head type | Plug straight M12 / IP67 |
| Coding | A (Standard) |
Characteristics head 2
| Head type | Plug straight M12 / IP67 |
| Coding | A (Standard) |
Standards and Regulations
| Standards/specifications | M12 connector IEC 61076-2-101 |
Cable
| Cable Type | Ethernet flexible CAT5, 4-pair |
| Cable type (abbreviation) | 94B |
| UL AWM style | 20963 (80°C/30 V) |
| Signal type/category | Ethernet CAT5 (IEC 11801), 1 Gbps |
| Cable structure | 4x2xAWG26/7; SF/UTP |
| Conductor Cross Section | 4x 2x 0.14 mm² |
| AWG Signal Line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 0.96 mm |
| Wire colors | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 4 pairs for core |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 70 % |
| External sheath, color | water blue RAL 5021 |
| Outer sheath thickness | 1.05 mm |
| External cable diameter D | 6.4 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Tensile strength GRP | ≤ 100 N |
| Cable weight | 47 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | Foamed PE |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 5 GΩ*km |
| Loop resistance | ≤ 290.00 Ω/km |
| Cable capacity | 48 nF/km (at 1 kHz) |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 71.3 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 62.3 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 56.3 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 53.2 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 51.8 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 48.9 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 44.4 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 41.3 dB (at 100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 62.3 dB (with 1 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 53.3 dB (at 4 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 47.3 dB (at 10 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 44.2 dB (at 16 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 42.8 dB (at 20 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 39.9 dB (at 31.25 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 35.4 dB (at 62.5 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 32.3 dB (at 100 MHz) |
| Attenuation | 3.2 dB (with 1 MHz) |
| Attenuation | 6 dB (at 4 МHz) |
| Attenuation | 9.5 dB (at 10 MHz) |
| Attenuation | 12.1 dB (at 16 MHz) |
| Attenuation | 13.6 dB (at 20 МHz) |
| Attenuation | 17.1 dB (at 31.25 МHz) |
| Attenuation | 24.8 dB (at 62.5 МHz) |
| Attenuation | 32 dB (at 100 MHz) |
| Return loss (RL) | 23 dB (at 4 МHz) |
| Return loss (RL) | 24.1 dB (at 8 МHz) |
| Return loss (RL) | 25 dB (at 10 MHz) |
| Return loss (RL) | 25 dB (at 16 MHz) |
| Return loss (RL) | 25 dB (at 20 МHz) |
| Return loss (RL) | 23.6 dB (at 31.25 МHz) |
| Return loss (RL) | 21.5 dB (at 62.5 МHz) |
| Return loss (RL) | 20.1 dB (at 100 MHz) |
| Signal runtime | 5.3 ns/m |
| Coupling resistance | ≤ 100.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | ≤ 100 V |
| Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 700 V (50 Hz, 1 min.) |
| Flame resistance | according to IEC 60332-1-2 |
| Halogen-free | according to IEC 60754-1 |
| Resistance to Oil | according to EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 80 °C |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
| Shielded | yes |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
