Official DistributorSKU
MPN
SAC-3P-10,0-547/MINFR
Weight
0.022 kg
Series SAC-3P

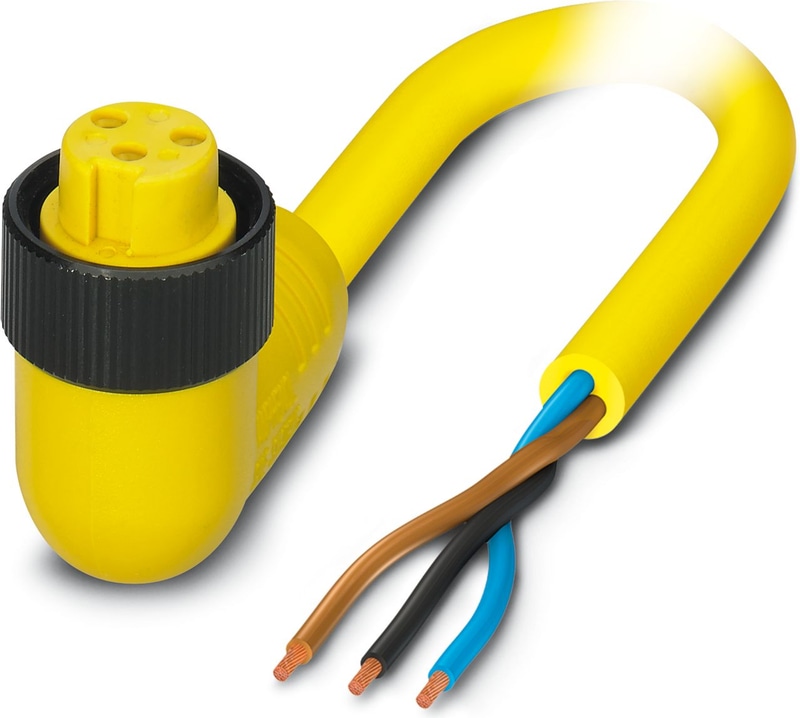

SAC-3P-10,0-547/MINFR - Power cable
Power cable, 3-position, PVC, yellow, free cable end, on Socket angled 7/8"-16UNF, coding: A, cable length: 10 m
- Easy and safe: 100 % electrically tested plug-in components
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Trade restriction
| CE note | The products are offered exclusively for export outside the EU and the European Economic Area. |
Product properties
| Application | Standard |
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Material of grip body | PVC |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PVC |
| Material for screw connection | Anodized aluminum |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 300 V AC |
| Nominal voltage UN | 300 V DC |
| Nominal current IN | 13 A |
Mechanical data
| Insertion/withdrawal cycles | 100 |
Signaling
| Status display | No |
| Status display present | No |
Conductor connection
| Tightening torque | 10 lbf-in. |
| Tightening torque | 1.12 Nm |
Connection 1
| Type | free cable end |
Connection 2
| Type | Socket angled 7/8"-16UNF |
| Number of Positions | 3 |
| Coding type | A |
Cable/line
| Cable Length | 10 m |
CMX-OUTDOOR-CMG [547]
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | CMX-OUTDOOR-CMG [547] |
| Conductor Cross Section | 3 x AWG 18 |
| External Cable Diameter | 5.70 mm |
| Outer sheath, material | PVC |
| External sheath, color | yellow |
| Conductor material | Bare Cu litz wires |
| Single wire, color | black 1, brown 2, blue 3 |
| Nominal voltage, cable | 300 V |
| Flame resistance | UL 1581, FT4 |
| Other resistance | UV resistant (720 h) (UL 2556) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -30 °C ... 105 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -20 °C ... 105 °C (Plug / socket) |
| Ambient Temperature (Operation) | -20 °C ... 105 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -30 °C ... 105 °C (Cable, flexible installation) |
Accessories
PROT-MINMS-PA-CHAIN - 7/8" sealing cap made of plastic with fixing band, for sensor cables, for 7/8" sockets
