QPD N 3PE1,5 8-13 BK
Weight
0.016 kg
Series QPD-N
QPD N 3PE1,5 8-13 BK - Nut

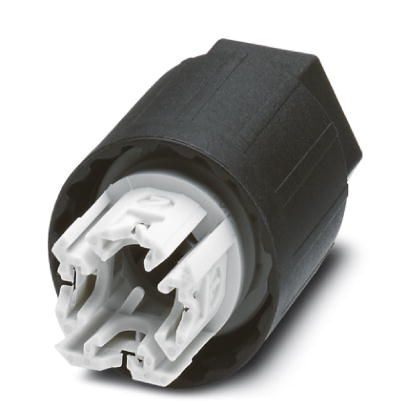

Nut, product family: QPD, connection method: IDC connection, number of positions: 3+PE, 0.5 mm2 ... 1.5 mm2, 690 V, 17.5 A, PA, black, external cable diameter: 10 mm ... 13 mm
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
Technical Specifications
General
| Type | QPD 4x1,5 |
| Color | black |
| Locking Type | Screw locking |
| Connection Method | IDC connection |
| Number of Positions | 4 |
| Connection profile | 3+PE |
| Tightening torque, union nut | 8 Nm |
| Number of Connections | 10 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 1.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 16 |
Cabel
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire insulation material | PVC/PE/TPE/rubber |
| Wire diameter including insulation | 1.6 mm ... 3 mm |
| External Cable Diameter | 10 mm ... 13 mm |
| Stripping length of the sheath | 60 mm (Branch line) |
| Stripping length of the sheath | 60 mm (Master cable) |
| Position marking | 1, 2, 3, PE |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 |
| Degree of Protection | IP69K |
| Ambient temperature (storage/transport) | -40 ... 80 |
| Temperature when conductor connected | -5 ... 50 |
Electrical characteristics
| Rated voltage (III/3) | 690 |
| Rated voltage (III/2) | 1000 |
| Rated voltage (II/2) | 1000 |
| Rated surge voltage (III/3) | 8 |
| Rated surge voltage (III/2) | 8 |
| Rated surge voltage (II/2) | 8 |
Mechanical characteristics
| QUICKON connectability | max. 10 |
| Category of shock impact | IK07 |
Material data
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Overvoltage category | III |
| Category of shock impact | IK07 |
