1412000
Official DistributorSKU
PHX1412000
MPN
SACC-CIP-M12MS-8P SMD R32
Weight
0.007 kg
Series SACC-CIP-M

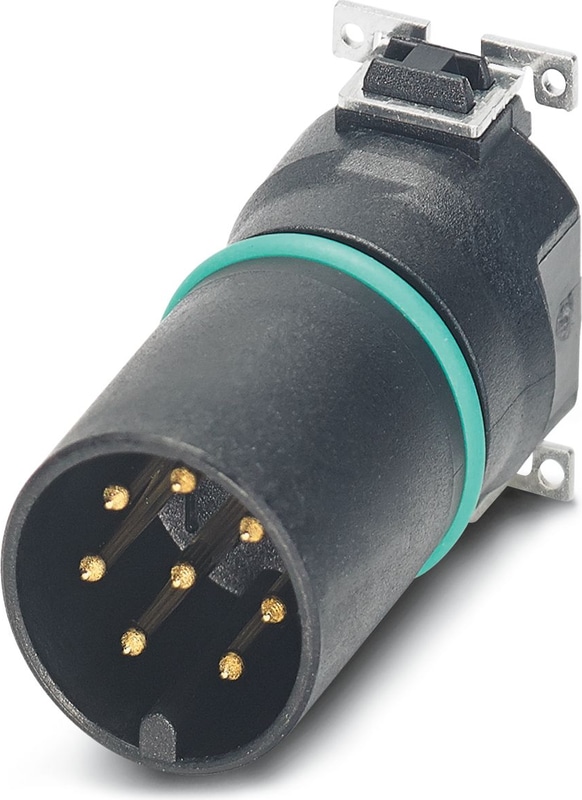

SACC-CIP-M12MS-8P SMD R32 - Contact carrier
Contact carrier, 8-position, Pin, straight, M12, coding: A, PCB mounting, SMD reflow, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238954
- Reduced mounting costs thanks to two-piece device connector
- Packaging available for automated pick and place assembly
- All common pin assignments and codings available
- Easy device integration thanks to mechanical port screw connections with threaded attachment, press-in contour or direct integration in the front plate
- Additional gasket for the device when not plugged in
Technical Specifications
Product properties
| Application | Signal |
| Number of Positions | 8 |
| Seal present | yes |
| Shielded | no |
| Coding | A |
| Thread type | M12 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V |
| Nominal current IN | 2 A |
Connection data
| Connection Method | SMD reflow |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Seal material | FKM |
| Contact Material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA |
Connection 1
| Head design | Pin |
| Head cable outlet | straight |
| Head thread type | M12 |
| Coding | A |
Mechanical data
| Insertion/withdrawal cycles | > 100 |
Ambient conditions
| Degree of protection (when plugged in) | IP67 (correctly plugged in and locked) |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (Plug / socket) |
| Ambient Temperature (Operation) | -55 °C ... 105 °C (without mechanical actuation) |
M12
| Standard designation | M12 connector |
| Standards/specifications | IEC 61076-2-101 |
| Note | In line with |
Mounting
| Mounting Type | PCB mounting |
Packaging specifications
| Type of packaging | Belt |
| Delivery state | with assembly pad |
Accessories
SACC-BP-M-M12/M15-6-SMD - Housing screw connection, Pin, Rear mounting, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239053
SACC-BP-M-M12/M15-6-SMD SCO - Housing screw connection, Pin, M12-SPEEDCON, Rear mounting, M15 x 1, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239054
SACC-FP-M-M12/M14 SMD - Housing screw connection, Pin, M12, Front mounting, M14 x 1, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1238970
Why Proax for Phoenix Contact 1412000?
Proax is an authorized distributor of Phoenix Contact 1412000 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 100 |
