LC duplex
1411052
Official DistributorSKU
PHX1411052
FO connectors FOC-C-LCDU-GOF-MM

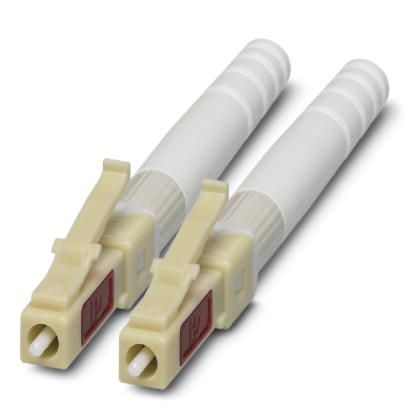

LC duplex connector, with long bend protection, for multi-mode 50/125 µm, beige
- suitable for quick and easy field assembly or repair
- No bonding or polishing
- Reusable connectors
- A real alternative to splicing
- Optimum attenuation values with easy assembly
- Long-term durability, thanks to the latest index matching gel
- the 8° fiber transition ensures optimum return loss (RL)
- meets IEC 61754-20 (LC) and FprEN 50377-17-1 (connectors for field assembly)
- Cleave technology
- Reusable connector
Technical Specifications
Mechanical characteristics
| Connection Method | mechanical splice |
| Cable outlet | straight |
| Locking Type | Clip locking |
| Weight | 5.6 g |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -10 °C ... 60 °C (IEC 61300-2) |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
| Ambient temperature (storage/transport) | -10 °C ... 60 °C |
| Degree of Protection | IP20 |
Material data
| Housing Material | PBT |
| Width | 6 mm |
| Height | 11.2 mm |
| Length | 58.7 mm |
Electrical characteristics
| Transmission Speed | 10 Gbps |
Line characteristics
| Type of cable | for all common cable types |
| Cable Type | Fiberglass |
| Cable structure | semi-loose compact wires (STB) |
| External Cable Diameter | 0.25 mm up to 3 mm (for the wire and cable connection) |
| External sheath, color | green |
| Transmission medium | FO |
| Number of fibers | 2 |
| Fiber type | Multi-mode fiberglass |
| Fiber | GOF |
| Attenuation | ≤ 0.5 dB ((95%) according to IEC 61300-3-34) |
| Attenuation | ≤ 0.2 dB ((typical value) according to IEC 61300-3-34) |
| Tensile strength short-term/long-term | 70N (120s.) bei Aderdurchmesser >2 mm |
| cable layer type | Indoors |
Standards and Regulations
| Flame resistance | yes |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
