1408939
Official DistributorSKU
PHX1408939

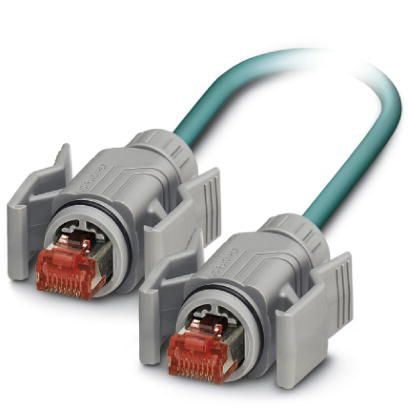

Network cable - NBC-R4MC/5,0-93E/R4MC
Assembled Ethernet cable, CAT5e, shielded, 2-pair, AWG 26 stranded (7-wire), RAL 5021 (water blue), RJ45 plug/IP67, gray on RJ45 plug/IP67, gray, line, length 5 m
Technical Specifications
Dimensions
| Length of Cable | 5.00 m |
Ambient conditions
| Degree of Protection | IP67 (RJ45 connector) |
| Ambient Temperature (Operation) | -20 °C ... 70 °C (RJ45 connector) |
General data
| Rated current at 40°C | 1 A |
| Rated voltage | 48 V |
| Number of Positions | 4 |
| Flammability rating according to UL 94 | V2 |
| Degree of pollution | 2 |
| Alternative short product description | Ethernet cable |
| Rated voltage (III/3) | 72 V (DC) |
| Insertion/withdrawal cycles | ≥ 750 |
| Number of slots | 1 |
| Transmission characteristics (category) | CAT5 |
| Transmission Speed | 100 Mbps |
Characteristics head 1
| Color | gray |
| Material (component) | CuSn (Contact) |
| Material (component) | Ni/Au (Contact surface) |
| Material (component) | PC (Contact carriers) |
| Material (component) | PA (Housing) |
| Insertion/withdrawal cycles | ≥ 750 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
Characteristics head 2
| Color | gray |
| Material (component) | CuSn (Contact) |
| Material (component) | Ni/Au (Contact surface) |
| Material (component) | PC (Contact carriers) |
| Material (component) | PA (Housing) |
| Insertion/withdrawal cycles | ≥ 750 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
Cable
| Cable Type | Ethernet flexible CAT5, 2-pair |
| Cable type (abbreviation) | 93E |
| UL AWM style | 20963 (80°C/30 V) |
| Signal type/category | Ethernet CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Conductor Cross Section | 2x 2x 0.14 mm² |
| AWG Signal Line | 26 |
| Conductor structure signal line | 7x 0.16 mm |
| Core diameter including insulation | 0.98 mm |
| Wire colors | white/orange-orange, white/green-green |
| Twisted pairs | 2 cores to the pair |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 70 % |
| External sheath, color | water blue RAL 5021 |
| Outer sheath thickness | 1.2 mm |
| External cable diameter D | 6.4 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Tensile strength GRP | ≤ 80 N |
| Cable weight | 42 kg/km |
| Outer sheath, material | PUR |
| Material conductor insulation | Foamed PE |
| Conductor material | Bare Cu litz wires |
| Standards/specifications | Electrical requirements EN 50288-2-2 |
| Insulation resistance | ≥ 500 MΩ*km |
| Loop resistance | ≤ 290.00 Ω/km |
| Cable capacity | approx. 45 nF/km (at 1 kHz) |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Near end crosstalk attenuation (NEXT) | 65.3 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 56.3 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 50.3 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 47.2 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 45.8 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 42.9 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 38.4 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 35.3 dB (at 100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 62.3 dB (with 1 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 53.3 dB (at 4 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 47.3 dB (at 10 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 44.2 dB (at 16 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 42.8 dB (at 20 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 39.9 dB (at 31.25 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 35.4 dB (at 62.5 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 32.3 dB (at 100 MHz) |
| Attenuation | 3.2 dB (with 1 MHz) |
| Attenuation | 6 dB (at 4 МHz) |
| Attenuation | 9.5 dB (at 10 MHz) |
| Attenuation | 12.1 dB (at 16 MHz) |
| Attenuation | 13.6 dB (at 20 МHz) |
| Attenuation | 17.1 dB (at 31.25 МHz) |
| Attenuation | 24.8 dB (at 62.5 МHz) |
| Attenuation | 32 dB (at 100 MHz) |
| Return loss (RL) | 23 dB (at 4 МHz) |
| Return loss (RL) | 24.1 dB (at 8 МHz) |
| Return loss (RL) | 25 dB (at 10 MHz) |
| Return loss (RL) | 25 dB (at 16 MHz) |
| Return loss (RL) | 25 dB (at 20 МHz) |
| Return loss (RL) | 23.6 dB (at 31.25 МHz) |
| Return loss (RL) | 21.5 dB (at 62.5 МHz) |
| Return loss (RL) | 20.1 dB (at 100 MHz) |
| Signal runtime | 5.3 ns/m |
| Coupling resistance | ≤ 100.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | ≤ 100 V (Peak value, not for high-power applications) |
| Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 700 V (50 Hz, 1 min.) |
| Current carrying capacity of cable | 2 A (according to DIN VDE 0891-1) |
| Flame resistance | according to IEC 60332-1-2 |
| Flame resistance | in acc. to UL VW1 |
| Halogen-free | according to IEC 60754-1 |
| Resistance to Oil | according to EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 80 °C |
| Ambient temperature (storage/transport) | -20 °C ... 80 °C |
| Shielded | yes |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
