1407593
Official DistributorSKU
PHX1407593
MPN
SI-M1B-GL
Weight
0.198 kg
Series SI-M

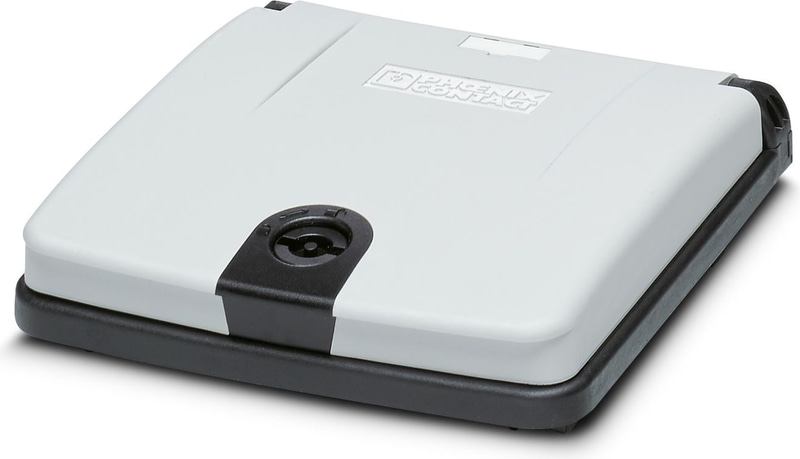

SI-M1B-GL - Mounting frame
Mounting frame for two front plates/sockets, plastic frame: black, plastic cover: gray, closed with 3 mm two-way key bit and rotary knob, included.
Technical Specifications
Notes
| Note on application | with enclosed rotary knob |
Product properties
| Type | for 2 front plates |
Dimensions
| Width | 131 mm |
| Depth | 34.5 mm |
| Length | 127 mm |
Installation dimensions
| Width of the assembly cutout | 117 mm |
| Length of the assembly cutout | 91 mm |
Material specifications
| Material Housing | PBT |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -30 °C ... 70 °C |
| Ambient temperature (storage/transport) | -30 °C ... 80 °C |
Mounting
| Assembly instructions | Suitable for panel thicknesses 1 mm ... 5 mm |
Accessories
VS-SI-FP-2RJ-MOD - Front plate, plastic with shroud, for 2x RJ with modular system (Keystone)
VS-SI-FP-2DSUB9 - Data front plate, plastic, for 2 x 9-pos. D-SUB, item 1656961 may be required for mounting D-SUB inserts
VS-SI-FP-DSUB9-DSUB15, Data front plate, plastic, for 1 x 15-pos. D-SUB and 1 x 15-pos. D-SUB, item 1656961 may be required for mounting D-SUB inserts
VS-SI-FP-DSUB9-DSUB25 - Data front plate, plastic, for 1 x 9-pos. D-SUB and 1 x 25-pos. D-SUB, item 1656961 may be required for mounting D-SUB inserts
VS-SI-FP-2DSUB15, Data front plate, plastic, for 2 x 15-pos. D-SUB, item 1656961 may be required for mounting D-SUB inserts
VS-SI-FP-DSUB15-DSUB25, Data front plate, plastic, for 1 x 15-pos. D-SUB and 1 x 25-pos. D-SUB, item 1656961 may be required for mounting D-SUB inserts
VS-SI-FP-2DSUB25, Data front plate, plastic, for 2x D-SUB 25, item 1656961 may be required for mounting D-SUB inserts
Why Proax for Phoenix Contact 1407593?
Proax is an authorized distributor of Phoenix Contact 1407593 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
