1082299
Official DistributorSKU
PHX1082299
MPN
HS LCA-RGB-10X5-L
Weight
0.007 kg

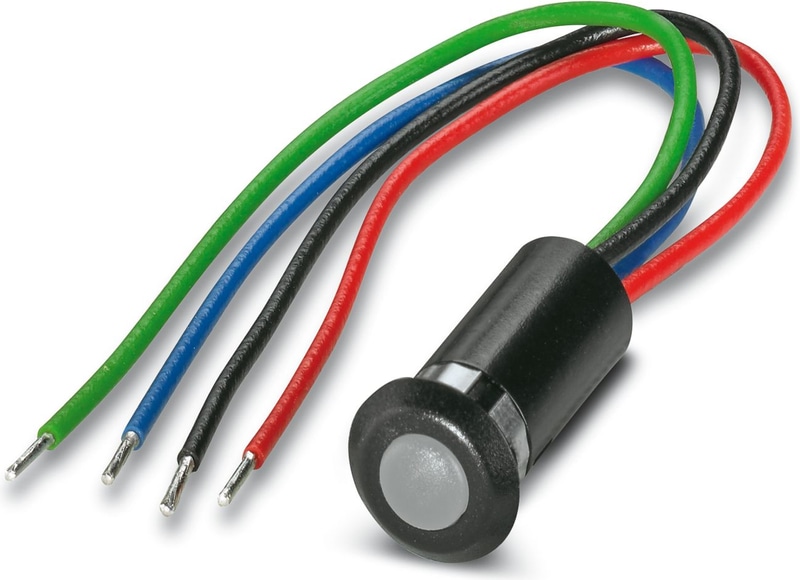

HS LCA-RGB-10X5-L - Signal light
10 mm signal light with SMD-LED 5 mm (color: RGB) for assembly on wall thicknesses from 1.5 mm. Black housing made of polycarbonate (UL 94-V0) with four 94 mm tin-plated free wire ends, watertight IP68 (EN 60529)
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Number of Positions | 1 |
| Alignment | flexible |
| Type | active, flexible |
| Conductor type | Signal light with litz wires |
| Head form | Raised head |
| Number of indicators | 1 (1 row x 1 column) |
Dimensions
| Diameter | 10 mm (Aperture diameter) |
| Diameter | 5 mm (Lens diameter) |
| Hole diameter | 8 mm |
| Dimensions | 94 mm (Cable ends) |
Material specifications
| Insulating material | PC |
Ambient conditions
| Max. IP code to attain | IP68 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C |
Packaging specifications
| Type of packaging | PE bag |
Why Proax for Phoenix Contact 1082299?
Proax is an authorized distributor of Phoenix Contact 1082299 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
