Official DistributorSKU
MPN
QPD W3PE2,5 M25 0,25 BK B-S
Weight
0.05 kg
Series QPD-W
QPD W3PE2,5 M25 0,25 BK B-S - Panel feed-through
Panel feed-through, product family: QPD, connection method: Spade connection (Welded-on), number of positions: 3+PE, M25, Pin, 1 mm2 ... 2.5 mm2, 690 V, 20 A, PA, black, without QUICKON nut, coding: coded, 2.5 mm2, with ferrules at the end, cable length: 0.25 m, pin assignment: 1 = BN, 2 = BU, PE = GNYE, 3 = N.C.
- Innovative and time saving - QUICKON fast connection for time saving of up to 80 % for on-site connection
- Robust throughout: housing with IP68/IP69K and IK07 protection for a wide range of applications
- Safer connection with mechanical coding to protect against mismatching, and touch-proof protection in accordance with DIN EN 0105
- Efficient - by using panel feed-throughs, devices no longer need to be opened in order to connect cables
Technical Specifications
Product properties
| Product family | QPD |
| Type | QPD 4x2,5 |
| Number of Positions | 4 |
| Connection profile | 3+PE |
| Position marking | 1, 2, 3, PE |
| Number of Connections | 10 |
| Number of connections per position | 1 |
| Coding | coded |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Connection technology
| Connection method On the device side | Spade connection (Welded-on) |
| Frequency of connections between conductors of the same cross section | max. 10 |
Conductor connection
| Conductor cross section flexibel | 1 mm² ... 2.5 mm² |
| Conductor cross section solid | 1 mm² ... 2.5 mm² |
| Connection cross section AWG | 16 ... 14 |
| Tightening torque Union nut | 10 Nm |
| Tightening torque Locking nut | 5 Nm |

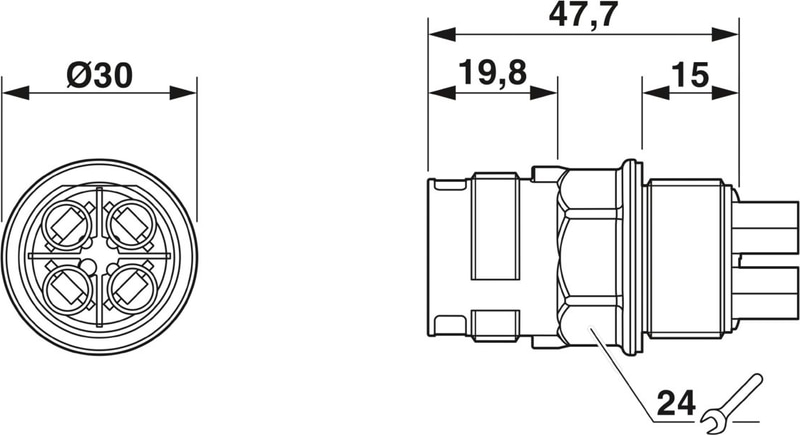

Dimensions
| Width | 30 mm |
| Height | 30 mm |
| Length | 47.7 mm |
| Diameter | 30 mm |
Electrical properties
| Rated surge voltage (II/2) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (III/3) | 6 kV |
| Contact resistance | < 3 mΩ |
| Rated voltage (II/2) | 1000 V |
| Rated voltage (III/2) | 1000 V |
| Rated voltage (III/3) | 690 V |
| Nominal voltage UN | 690 V |
| Nominal current IN | 20 A |
Mechanical data
| Insertion/withdrawal cycles | max. 50 |
Material specifications
| Color | black (RAL 9005) |
| Material Housing | PA |
| Material Contact | Cu |
| Material Contact surface | Silver-plated |
| Flammability rating according to UL 94 | V0 |
| Material wire insulation | PVC/PE/TPE/rubber |
Cable/line
| Cable Length | 0.25 m |
| Structure of individual litz in acc. with VDE 0295 / smallest wire diameter | VDE 0295 class 1 to 6/min. 0.15 mm |
| Wire diameter including insulation | 2 mm ... 3.6 mm |
| Position marking | 1, 2, 3, PE |
| Single wire, color | brown, blue, green/yellow |
| Cable cross section | 2.5 mm² |
| Material wire insulation | PVC/PE/TPE/rubber |
| Halogen-free | Wire insulation and filler contain halogen |
Mounting
| Mounting Type | Front mounting M25 |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP68 (2 m / 24 h) |
| Degree of Protection | IP69K |
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
| Temperature when conductor connected | -5 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 100 °C |
Why Proax for Phoenix Contact 1076215?
Proax is an authorized distributor of Phoenix Contact 1076215 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
