1073849
Official DistributorSKU
PHX1073849
MPN
NBC-M12MSD/1,5-93E SEP
Weight
0.082 kg
Series NBC-M

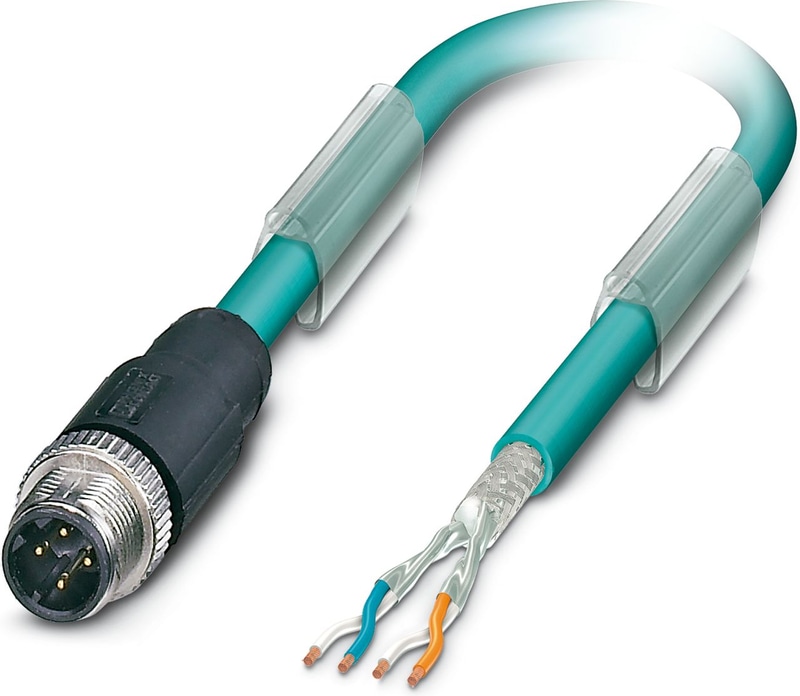

NBC-M12MSD/1,5-93E SEP - Bus system cable
Bus system cable, Ethernet CAT5 (100 Mbps), 4-position, PUR halogen-free, water blue RAL 5021, shielded (Aluminum-coated foil, tinned copper braided shield), Plug straight M12, coding: D / IP67, on free cable end, cable length: 1.5 m
Technical Specifications
Product properties
| Application | Standard |
| Sensor Type | Ethernet |
| Number of Positions | 4 |
| No. of cable outlets | 1 |
| Shielded | yes |
| Coding | D |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Interfaces
| Bus system | Ethernet |
| Signal type/category | Ethernet CAT5 (IEC 11801), 100 Mbps |
Signaling
| Status display | No |
| Status display present | No |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 48 V AC |
| Nominal voltage UN | 60 V DC |
| Nominal current IN | 4 A (Plug/socket in accordance with IEC 61076-2-101, cable technical data is to be observed) |
| Transmission medium | Copper |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Material specifications
| Flammability rating according to UL 94 | V0 |
Connection 1
| Type | Plug straight M12 / IP67 |
| Number of Positions | 4 |
| Coding type | D (Data) |
| Handle color | black |
| Material | CuSn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | PA (Contact carriers) |
| Material | TPU, hardly inflammable, self-extinguishing (Grip) |
| Material | Zinc die-cast, nickel-plated (Screw connection) |
| Insertion/withdrawal cycles | ≥ 100 |
| Insulation resistance | ≥ 100 MΩ |
| Tightening torque | 0.4 Nm |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C |
Connection 2
| Type | free cable end |
Cable/line
| Cable Length | 1.5 m |
Ethernet flexible CAT5, 2-pair [93E]
| Cable weight | 42 kg/km |
| UL AWM style | 20963 (80°C/30 V) |
| Wiring standards/regulations | Electrical requirements EN 50288-2-2 |
| Number of Positions | 4 |
| Shielded | yes |
| Cable Type | Ethernet flexible CAT5, 2-pair [93E] |
| Conductor structure | 2x2xAWG26/7, SF/UTP |
| Signal runtime | 5.3 ns/m |
| Conductor structure signal line | 7x 0.16 mm |
| AWG Signal Line | 26 |
| Conductor Cross Section | 2x 2x 0.14 mm² |
| Wire diameter incl. insulation | 0.98 mm |
| External Cable Diameter | 6.40 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | water blue RAL 5021 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | Foamed PE |
| Single wire, color | white/orange-orange, white/green-green |
| Thickness, outer sheath | 1.20 mm |
| Twisted pairs | 2 cores to the pair |
| Overall twist | Two pairs with two fillers to the core |
| Optical shield covering | 70 % |
| Insulation resistance | ≥ 500 MΩ*km |
| Coupling resistance | ≤ 100.00 mΩ/m (at 10 MHz) |
| Loop resistance | ≤ 290.00 Ω/km |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Cable capacity | approx. 45 nF/km (at 1 kHz) |
| Nominal voltage, cable | ≤ 100 V (Peak value, not for high-power applications) |
| Test voltage Core/Core | 700 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 700.00 V (50 Hz, 1 min.) |
| Current carrying capacity of cable | 2.00 A (according to DIN VDE 0891-1) |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Smallest bending radius, fixed installation | 26 mm |
| Smallest bending radius, movable installation | 52 mm |
| Tensile strength | ≤ 80 N |
| Near end crosstalk attenuation (NEXT) | 65.3 dB (with 1 MHz) |
| Near end crosstalk attenuation (NEXT) | 56.3 dB (at 4 МHz) |
| Near end crosstalk attenuation (NEXT) | 50.3 dB (at 10 MHz) |
| Near end crosstalk attenuation (NEXT) | 47.2 dB (at 16 MHz) |
| Near end crosstalk attenuation (NEXT) | 45.8 dB (at 20 МHz) |
| Near end crosstalk attenuation (NEXT) | 42.9 dB (at 31.25 МHz) |
| Near end crosstalk attenuation (NEXT) | 38.4 dB (at 62.5 МHz) |
| Near end crosstalk attenuation (NEXT) | 35.3 dB (at 100 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 62.3 dB (with 1 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 53.3 dB (at 4 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 47.3 dB (at 10 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 44.2 dB (at 16 MHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 42.8 dB (at 20 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 39.9 dB (at 31.25 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 35.4 dB (at 62.5 МHz) |
| Power-summated near end crosstalk attenuation (PSNEXT) | 32.3 dB (at 100 MHz) |
| Return attenuation (RL) | 23 dB (at 4 МHz) |
| Return attenuation (RL) | 24.1 dB (at 8 МHz) |
| Return attenuation (RL) | 25 dB (at 10 MHz) |
| Return attenuation (RL) | 25 dB (at 16 MHz) |
| Return attenuation (RL) | 25 dB (at 20 МHz) |
| Return attenuation (RL) | 23.6 dB (at 31.25 МHz) |
| Return attenuation (RL) | 21.5 dB (at 62.5 МHz) |
| Return attenuation (RL) | 20.1 dB (at 100 MHz) |
| Shield attenuation | 3.2 dB (with 1 MHz) |
| Shield attenuation | 6 dB (at 4 МHz) |
| Shield attenuation | 9.5 dB (at 10 MHz) |
| Shield attenuation | 12.1 dB (at 16 MHz) |
| Shield attenuation | 13.6 dB (at 20 МHz) |
| Shield attenuation | 17.1 dB (at 31.25 МHz) |
| Shield attenuation | 24.8 dB (at 62.5 МHz) |
| Shield attenuation | 32 dB (at 100 MHz) |
| Halogen-free | according to IEC 60754-1 |
| Flame resistance | according to IEC 60332-1-2 |
| Flame resistance | in acc. to UL VW1 |
| Flame resistance | in accordance with UN ECE-R 118.03 |
| Resistance to Oil | in accordance with EN 60811-2-1 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
| Ambient temperature (installation) | -20 °C ... 80 °C |
Ambient conditions
| Degree of Protection | IP65/IP67/IP69K |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -25 °C ... 60 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 60 °C (Cable, flexible installation) |
