0833050
Official DistributorSKU
PHX0833050
MPN
UM1-TM (6X12) RD
Weight
0.002 kg

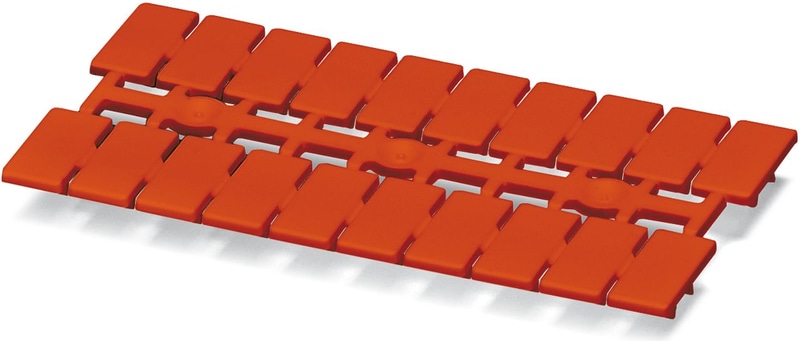

UM1-TM (6X12) RD - Marker for terminal blocks
Markers for marking terminal blocks from Weidmüller, Conta Clip, and Klemsan, 20-section, unmarked, can be marked with THERMOMARK CARD and BLUEMARK, color: red
Documents
Technical Specifications
Product properties
| Pitch | 6 mm |
| Type | high |
Marking
| Number of individual labels | 20 |
| Number of individual labels per row | 10 |
| Number of marker strips | 2 |
Dimensions
| Width | 6 mm |
| Length | 12 mm |
| Pitch | 6 mm |
Material specifications
| RoHS Compliant | yes |
| Color | flame red (RAL 3000) |
| Material | PC |
| Flammability rating according to UL 94 | V2 |
| Components | free from silicone, halogen, and cadmium |
Test for substances that would hinder coating with paint or varnish
| Result | Test passed |
UV resistance
| Specification | ISO 4892-2:2013-03 (following) |
| Result | Test passed |
| Test duration | 96 h |
Wipe resistance of inscriptions
| Specification | IEC 61010-1:2010-06 |
| Specification | DIN EN 62208 (VDE 0660-511):2012-06 (in parts) |
| Isopropyl [CAS No. 67-63-0] | Test passed |
| n-Hexane [CAS No. 110-54-3] | Test passed |
| Water + Petroleum ether [CAS No. 64742-82-1] | Test passed |
Testing in a condensation changing climate in the presence of sulfur dioxide
| Specification | DIN 50018:2013-05 |
| Result | Test passed |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
Salt spray test
| Specification | DIN EN 60068-2-11:2000-02 |
| Result | Test passed |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
Mounting
| Mounting Type | snap in |
Accessories
Why Proax for Phoenix Contact 0833050?
Proax is an authorized distributor of Phoenix Contact 0833050 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
