OT400U04CP
Official DistributorBy ABB
SKU
ABBOT400U04CP
MPN
1SCA022771R2300
Weight
7 kg

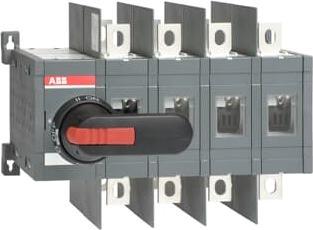

400A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked. UL version
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC303051M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303086D0201 |
Dimensions
| Product Net Width | 305 mm |
| Product Net Width | 12.01 in |
| Product Net Height | 185 mm |
| Product Net Height | 7.28 in |
| Product Net Depth / Length | 203 mm |
| Product Net Depth / Length | 7.99 in |
| Product Net Weight | 7 kg |
| Product Net Weight | 15.43 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 8000 cycle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 10 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kiloampere rms |
| Standards | UL 98 / IEC60947-6-1 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening torque | acc. IEC 60947-1 30 ... 44 N·m |
| Transition Type | Open |
Technical UL/CSA
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 125 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 250 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 350 Hp |
| Tightening torque | acc. IEC 60947-1 30 ... 44 N·m |
