2838924
Official DistributorSKU
PHX2838924
MPN
CHECKMASTER
Weight
24.75 kg
This item is ineligible for free shipping due to its size/weight.
Series CHECKMASTER

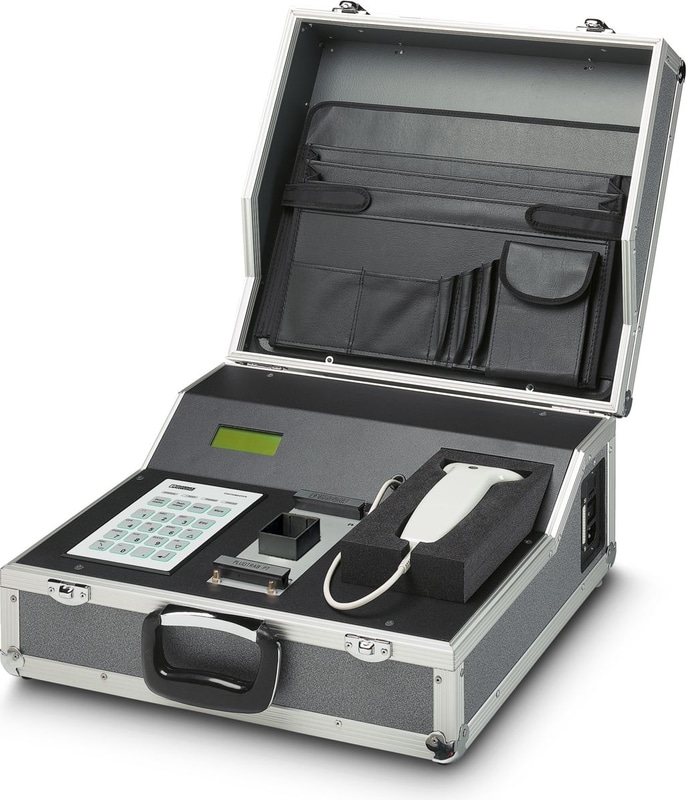

CHECKMASTER - Test device
Tester for checking the functions of TRABTECH protective devices
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Electrical properties
| Nominal voltage UN | 230 V AC (100 V AC ... 240 V AC) |
Connection data
| Connection Method | Inlet connector for non-heating dev. - IEC 60320-1/C14 |
Data
| Data bits | 8 |
| Data rate | 9600 Bit/s (Default) |
| Stop bits | 1 or 2 |
| Interface | RS-232 |
| Transmission physics | Copper |
Dimensions
| Width | 450 mm |
| Height | 203 mm |
| Depth | 410 mm |
Cable/line
| Cable Length | 3.00 m |
| Cable/line name | H05 VV-F |
Mechanical data
| Open side panel | No |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 5 °C ... 35 °C |
| Ambient temperature (storage/transport) | -10 °C ... 60 °C |
| Altitude | 2000 m |
Why Proax for Phoenix Contact 2838924?
Proax is an authorized distributor of Phoenix Contact 2838924 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
