2800714
Official DistributorSKU
PHX2800714
MPN
SYS N4X 120/208Y
Weight
0.222 kg
This product is Not Cancellable/Not Returnable
Series SYS-N

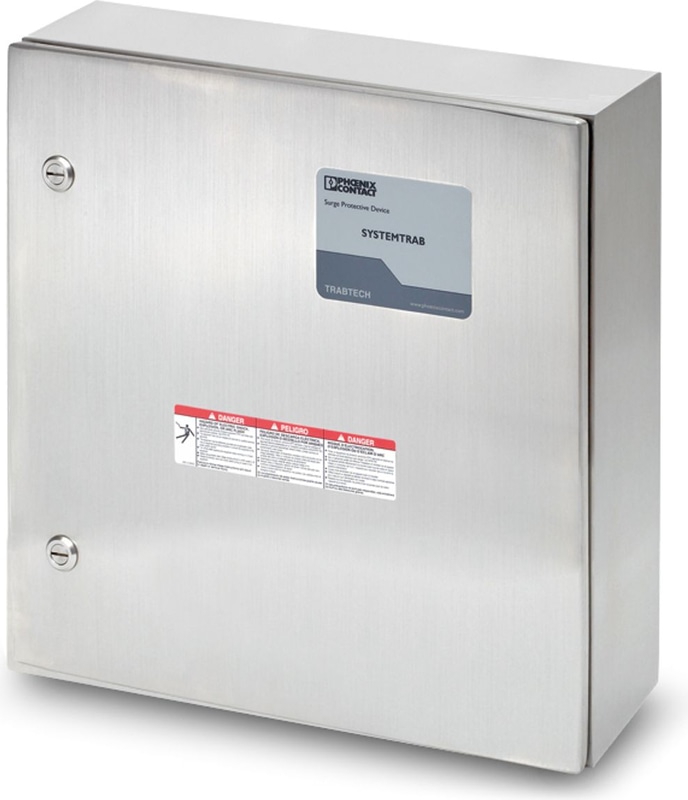

SYS N4X 120/208Y - Surge protection device
Indoor/outdoor lightning current arrester and TVSS system for 120/208-240 V
Technical Specifications
Product properties
| IEC test classification | I + II |
| EN type | T1 |
| Type | Housing for surface mounting |
| Surge protection fault message | Remote indication contact |
Electrical properties
| Nominal voltage UN | < 240 V |
| Fuse | 200 kA VSP100, 100 A, 200 kAIC (IR) |
General
| Power Systems | 120/208 V AC Wye |
Connection data
| Conductor cross section flexible min. | 16 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section, rigid min. | 10 mm² |
| Conductor cross section, rigid max. | 50 mm² |
| Connection Method | Screw connection |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
Dimensions
| Width | 400 mm |
| Height | 500 mm |
| Depth | 210 mm |
Material specifications
| Color | Steel / stainless steel |
| Color | black (RAL 9005) |
| Housing Material | Stainless steel 1.4404 |
Protective circuit
| Nominal voltage UN | 120/208 V AC (Wye) |
| Maximum continuous voltage UC | 275 V AC |
| Follow current interrupt rating Ifi | 50 kA |
| Response time tA | ≤ 25 ns |
Ambient conditions
| Degree of Protection | IP66 / NEMA 4X |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
UL specifications
| Short-circuit current rating (SCCR) | 50 kA |
| UL type | type 2 |
| Nominal discharge current In | 20 kA |
| Maximum Surge Current per Phase | 50 kA |
| Nominal Voltage | 120/208 V AC (Wye) |
| Power distribution system | Wye |
Standards
| Standards/regulations | ANSI/UL 1449:2014 Ed.4+R:17MAR2016 |
| Standards/regulations | IEC 60643-1 |
| Standards/regulations | EN 61643-11 |
| Standards/regulations | CAN/CSA-C22.2 No. 8:2013 Ed.5 |
Mounting
| Mounting Type | Surface/Wall mounting |
Why Proax for Phoenix Contact 2800714?
Proax is an authorized distributor of Phoenix Contact 2800714 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
