2800616
Official DistributorSKU
PHX2800616
MPN
LM-S-LS-H
Weight
0.823 kg

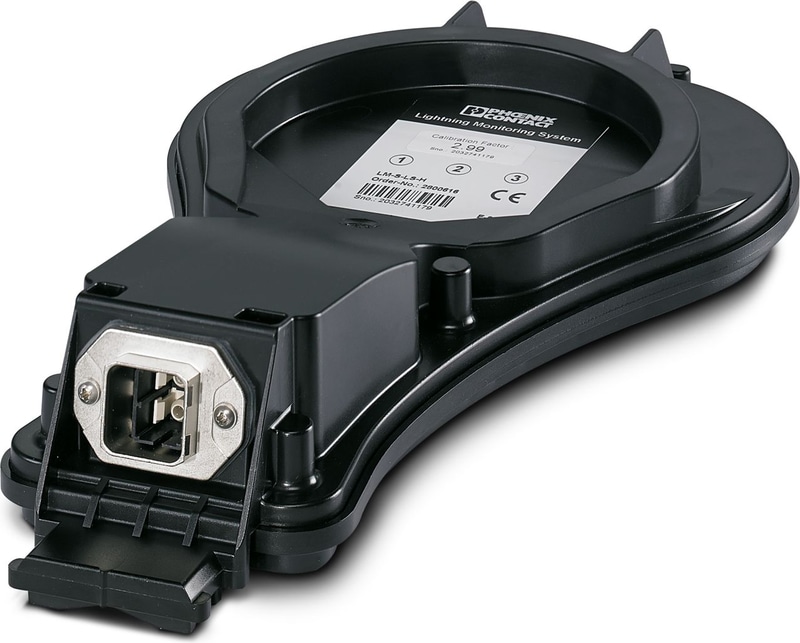

LM-S-LS-H - Lightning monitoring system
Optical lightning sensor for the live monitoring system for the continuous detection and evaluation of lightning strikes. IP67 protection.
- Optical lightning sensor for measuring current strength
- Robust design
- Resistant to vibrations, temperature, and humidity
- Good UV resistance
Technical Specifications
Product properties
| Product family | LM-S |
Evaluation unit Sensor interfaces
| Interface | Fiber optic interface |
| Number of Ports | 1 |
Sensor
| Detectable values (current strength) | ± 5.00 kA ... 400.00 kA |
Sensor Interfaces
| Interface | Fiber optic interface |
| Connection Method | SC-RJ socket with push/pull connector, IP67 |
Dimensions
| Width | 155 mm |
| Height | 290 mm |
| Depth | 50 mm |
Material specifications
| Color | black (RAL 9005) |
| Ferrule material | Zirconia ceramics |
| Housing Material | XYRON 644Z |
FO cable
| Fiber type | Quartz fiber |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -30 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 4000 m (amsl) |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
Mounting
| Mounting Type | On lightning arrester cables |
Accessories
Why Proax for Phoenix Contact 2800616?
Proax is an authorized distributor of Phoenix Contact 2800616 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
