F-MS-T1/T2 50 ST
Weight
0.078 kg
Series F-MS-T1

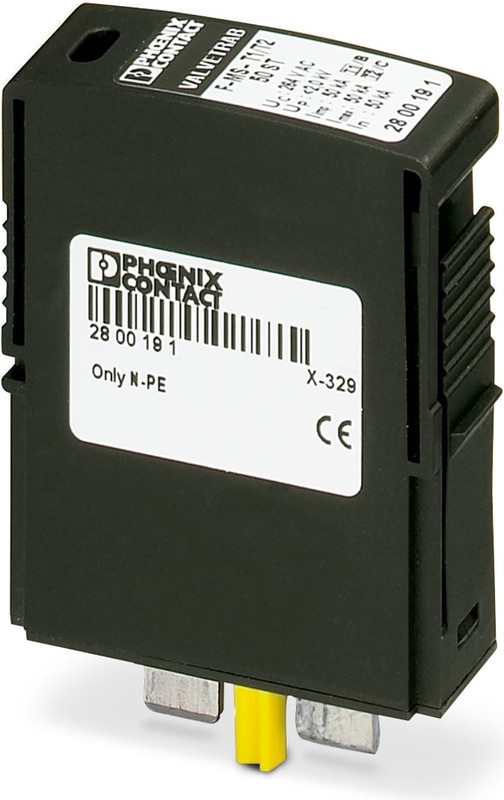

F-MS-T1/T2 50 ST - Type 1/2 surge protection plug
N-PE replacement plug for VAL-MS-T1/T2 335/12.5 plug-in lighting/surge arrester.
- Quality proven millions of times over in the widest range of applications
- Rapid installation with bridges, thanks to industry-standard overall width of 1 HP
- Easy testing and insulation measurement, thanks to pluggable protection modules
Technical Specifications
Product properties
| Product family | VALVETRAB MS |
| IEC test classification | I / II |
| IEC test classification | T1 / T2 |
| IEC test classification | T1 |
| EN type | T1 / T2 |
| EN type | T1 |
| IEC power supply system | TN-S |
| IEC power supply system | TT |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 1 |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
Connection data
| Connection Method | pluggable |
Dimensions
| Width | 17.7 mm |
| Height | 47 mm |
| Depth | 67.3 mm |
| Horizontal pitch | 1 Div. |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6/PBT |
| Material group | I |
| Housing Material | PA 6.6 |
| Housing Material | PBT |
Protective circuit
| Mode of protection | N-PE |
| Direction of action | N-PE |
| Nominal voltage UN | 240/415 V AC (TN-S) |
| Nominal voltage UN | 240/415 V AC (TT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 264 V AC |
| Residual current IPE | ≤ 5 µA |
| Standby power consumption PC | ≤ 1.30 mVA |
| Nominal discharge current In (8/20) µs | 50 kA |
| Maximum discharge current Imax (8/20) µs | 50 kA |
| Impulse discharge current (10/350) µs, charge | 25 As |
| Impulse discharge current (10/350) µs, specific energy | 625 kJ/Ω |
| Impulse discharge current (10/350) µs, peak value limp | 50 kA |
| Follow current interrupt rating Ifi | 100 A (264 V AC) |
| Voltage protection level Up | ≤ 1.7 kV |
| Residual voltage Ures | ≤ 0.6 kV (at In) |
| Residual voltage Ures | ≤ 0.5 kV (at 10 kA) |
| Residual voltage Ures | ≤ 0.5 kV (at 5 kA) |
| Residual voltage Ures | ≤ 0.4 kV (at 3 kA) |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 1.7 kV |
| TOV behavior at UT | 1200 V AC (200 ms / withstand mode) |
| Response time tA | ≤ 100 ns |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
| Shock (operation) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Vibration (Operation) | 7.5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
UL specifications
| Maximum continuous operating voltage MCOV (N-G) | 264 V AC |
| Nominal discharge current In (N-G) | 20 kA |
| Mode of protection | N-G |
| Power distribution system | Single phase |
| Nominal frequency | 50/60 Hz |
| Measured limiting voltage MLV (N-G) | 2600 V |
| SPD Type | 4CA |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
EN 61643-11
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | on base element |
Accessories
