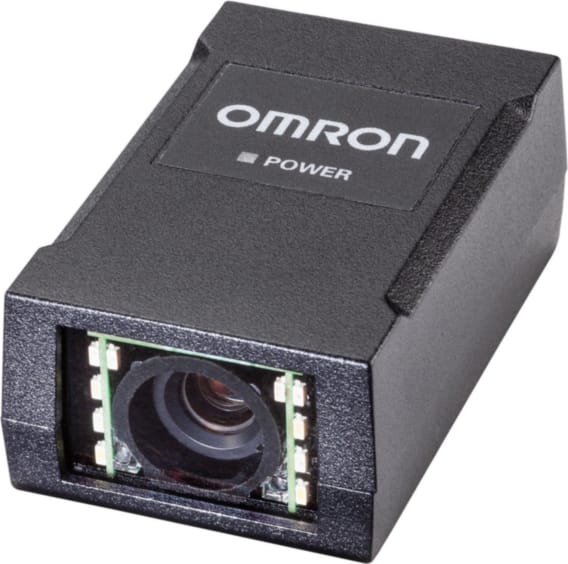

V330-F300M12M-NNP
Official DistributorBy Omron
SKU
OMRV330F300M12MNNP
V330 Code Reader, 1.2 MP monochrome, Medium view, Fixed focus 300 mm, No outer light, 1D/2D decoder, Ethernet TCP/IP, PROFINET, PoE, IP40
Documents
MicroHAWK V330 Ethernet Compact Barcode Reader
Micro-size, cost-effective TCP/IP barcode reader, perfect for OEM
A OEM and embedded application focused barcode imager available with multiple sensors and lens versions, the MicroHAWK V330-F furthers Omron Microscan’s 30+ year legacy of innovative, space-efficient, miniature design with a locking RJ45 communication connector and Power over Ethernet functionality. Perfect for OEMs and machine builders, the V330-F offers the perfect combination of size, performance, and flexible integration. The V330-F offers outstanding value and is the ideal solution for automation engineers looking for a cost effective yet powerful code reader in a micro-sized product.
- Ultra-compact (63.0 mm x 40.0 mm x 24.1 mm)
- IP40
- Ethernet TCP/IP
- Power over Ethernet
- X-Mode advanced decoding algorithms
- Integrated targeting and read/pass indicators
- WebLink browser-based setup interface
- Integrated targeting and read/pass LED indicators
- WebLink browser-based setup and monitoring
- Advanced password protection
- Advanced data output formatting
- Configuration database for on-the-fly flexible manufacturing adaptation
- Broad offering of cabling, power supply, and optical accessories
The MicroHAWK® family of barcode readers offers the most versatile decoding power available. Built on the highest-performance imaging engine in its class, MicroHAWK readers offer an array of modular hardware options to take on any decoding task in four micro form factors.
Technical Specifications
| Type | Commerical Barcode Reader |
| Code Type | 2D and 1D Codes |
| Decoder | 1D/2D Decoder |
| 2D Code Symbologies Supported | QR Code, Data Matrix (ECC200), Micro QR Code, Aztec Code |
| Bar Code Symbologies Supported | PDF417, MicroPDF417, GS1 Databar (Composite and Stacked), Code 39, Code 128, BC412, Interleaved 2 of 5, UPC/EAN, Codabar, Code 93, Pharmacode, PLANET, POSTNET, Japanese Postal, Australia Post, Royal Mail, Intelligent Mail, KIX |
| Connection | Ethernet TCP/IP,EtherNet/IP,PROFINET |
| Range | 300 mm |
| Supply Voltage | Power over Ethernet |
| Mounting | Fixed mount |
| Enclosure Rating | IP40 |
| Sensor | SXGA, 1.2 MP, Mono |
| Optics | High Density |
| Speed | High Speed |
Why Proax for Omron V330-F300M12M-NNP?
Proax is an authorized distributor of Omron V330-F300M12M-NNP. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | V330F300M12MNNP |
| Pack Size | 1 |
