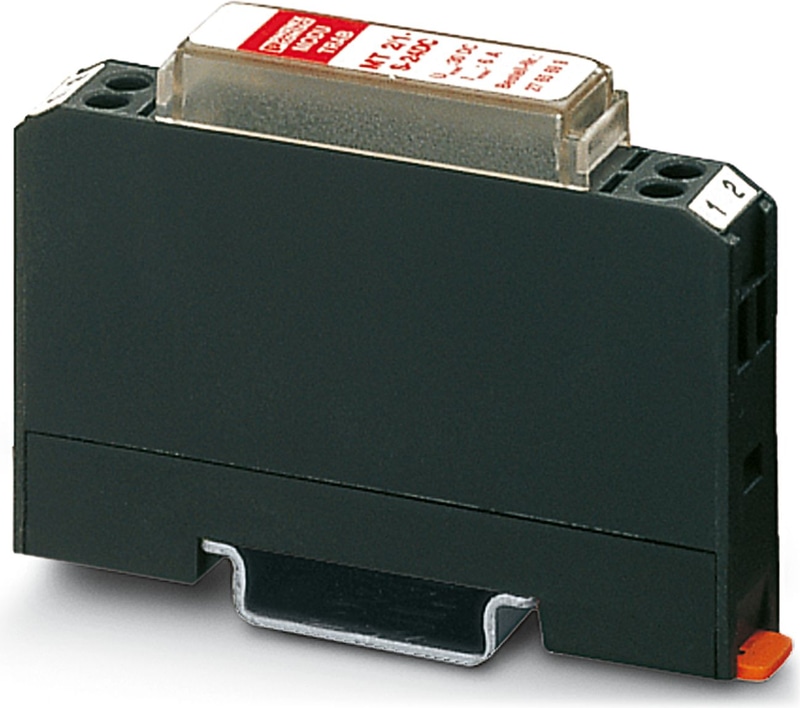

MT-2/1-S- 24DC - Surge protection device
Rail-mountable module with surge voltage fine protection, mounting on NS 35/7.5. Nominal voltage: 24 V DC, housing width: 12.5 mm
Technical Specifications
Product properties
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| Type | DIN rail module, one-piece |
| Number of Positions | 2 |
| Surge protection fault message | none |
| Wire pairs per module | 1 |
Electrical properties
| Nominal voltage UN | 24 V DC |
Connection data
| Connection Method | Screw terminal block |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 12.4 mm |
| Height | 77.5 mm |
| Depth | 55 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | Silver |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line |
| Maximum continuous voltage UC | 30 V DC |
| Maximum continuous voltage UC | 21 V AC |
| Rated current | 6 A |
| Operating effective current IC at UC | ≤ 10 µA |
| Nominal discharge current In (8/20) µs (line-line) | 1.5 kA |
| Total discharge current Itotal (8/20) µs | 1.5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 1.5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 185 A |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 55 V |
| Residual voltage at In (conductor-conductor) | ≤ 95 V |
| Response time tA (line-line) | ≤ 1 ns |
| Capacity (core-core) | typ. 7 nF |
| Surge protection fault message | none |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Impulse durability (line-line) | C2 - 2 kV / 1 kA |
| Impulse durability (line-line) | C3 - 100 A |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
Mounting
| Mounting Type | DIN rail: 35 mm |
