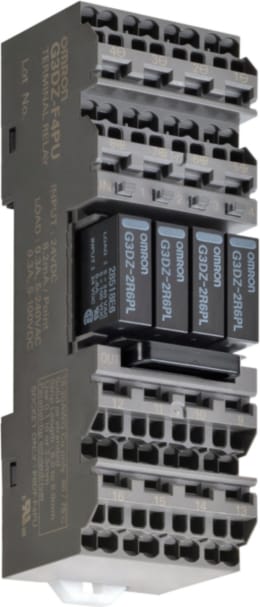

G3DZ-F4PU DC12
Official DistributorBy Omron
SKU
OMRG3DZF4PUDC12
Series G3DZ-F4PU Terminal Relay
Solid-state relay, PCB terminal, 4-pin, SPST-NO, 0.6 A, 12 VDC with push-in plus socket
G3DZ-F4PU Terminal Relay
G3DZ-F4PU Terminal Relay
G3DZ-F4PU terminal relay provides I/O flexibility with 4 SSR built into 1 terminal.
- Up to 0.3A load current rating
- 4 MOSFET relay outputs
- Each relay has independent inputs and contacts for PLC output compatibility (NPN or PNP)
- Push-In Terminals
- LED operation indicator
- Tool installed for easy removal and replacement
Technical Specifications
| Special Function | 4 Output |
| Input voltage range | 4 VDC - 30 VDC |
| Max Operating Input Voltage | 6 - 14.4 VC |
| Input Impedance Range | 0.9 kΩ ± 20% - 6.5 kΩ ± 20% |
| Max Rated Load Voltage | 240 VAC, 100 VDC |
| Max Applicable Load Voltage | 264 VAC, 125 VDC |
| Max Load Current | AC: 0.3 A, DC: 0.3 A |
| Inrush Current | 6 A (10 ms) |
| Zero Cross | No |
| Operation Indicator | Yes |
Why Proax for Omron G3DZ-F4PU DC12?
Proax is an authorized distributor of Omron G3DZ-F4PU DC12. We are Omron’s largest distributor in Canada. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | G3DZF4PUDC12 |
| Pack Size | 1 |
