E2E-X5MB1D12 5M
Official DistributorBy Omron

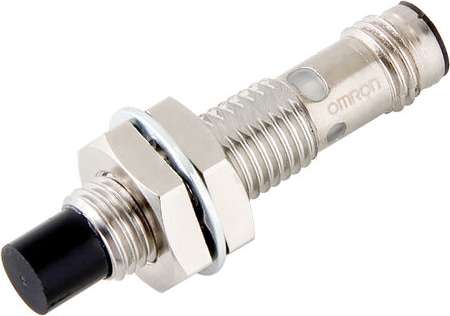

The Omron E2E-X5MB1D12 5M is a rugged M12 inductive proximity sensor designed for reliable, non-contact detection of metal objects in industrial automation applications. Its extended 5 mm sensing range, PNP normally open output, IO-Link capability, and durable 5-metre cable make it well suited for machinery, packaging, material handling, and production equipment.
5 mm sensing distance
M12 threaded cylindrical housing
Inductive sensing for metal object detection
PNP normally open output
IO-Link COM2 communication
10 to 30 VDC operating voltage
360-degree visible status indicator
Durable nickel-plated brass housing
IP67 and IP69K protection
Pre-wired 5 m PVC cable
Ideal for industrial automation and machine applications
| Type | Inductive Proximity Sensor |
| Output Type | Positive-Negative-Positive (PNP) |
| Special Function | 1 x Standard IEC Sensing Distance |
| Size | M12 |
| Shield Type | Unshielded |
| Contact Configuration | Normally Open (NO) |
| Case Material | Nickel-Plated Brass |
| Industry Standards | UL (UL60947-5-2), CSA (CAS C22.2 UL60947-5-2-14), CE |
| Range | x1 |
| Body Type | Short Body |
| Supply Type | 3-Wire Direct Current (DC) |
| Sensing Surface Material | Polybutylene Terephthalate (PBT) |
| IP Rating | IP67, IP67G, IP69K |
| IO-Link | COM2 |
| Approximate Weight (Packed State) | 95 g |
| IO-Link specification | Ver 1.1 |
| Baud Rate | 38.4 kB/s |
| Data Length | PD Size: 2 bytes, OD Size: 1 byte (M-Sequence Type: TYPE_2_2) |
| Cycle Time [Min] | 2.3 ms |
| Frequency | 800 Hz |
| DC Voltage | 10 to 30 V |
| Sensing Distance | 5 mm |
| Electrical connection | Polyvinyl Chloride (PVC) Cable |
| Detectable Object | Ferrous Metal (The Sensing Distance Decreases with Non-Ferrous Metal.) |
| Standard Sensing Object | Iron, 15 x 15 x 1 mm |
| Current Consumption [Max] | 16 mA |
| Protection Circuits | Power supply reverse polarity protection, Surge suppression, Output short-circuit protection, Output reverse polarity protection |
| Operating Ambient Temperature Range (with no Icing or Condensation) | -40 to 85 ºC |
| Storage Ambient Temperature Range (with no Icing or Condensation) | -40 to 85 ºC |
| Operating Ambient Humidity Range | 35 to 95 % |
| Storage Ambient Humidity Range | 35 to 95 % |
| Temperature Influence | ±15% max. of sensing distance at 23ºC in the temperature range of -40 to 85ºC, ±10% max. of sensing distance at 23ºC in the temperature range of -25 to 70ºC |
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Minimum Insulation Resistance (at 500 VDC) Between Current-Carrying Parts and Case | 50 MΩ |
| Alternating Current (AC) Dielectric Strength (50/60 Hz) for 1 minute between Current-Carrying Parts and Case | 1000 V |
| Vibration resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance for 10 Times each in X, Y, and Z Directions | 1000 m/s² |
| Threaded Length | 26 mm |
| Overall Length | 47.1 mm |
| Cable Length | 5 m |
