2749628
Official DistributorSKU
PHX2749628
MPN
TAE-TRAB FM-NFN-AP
Weight
0.083 kg

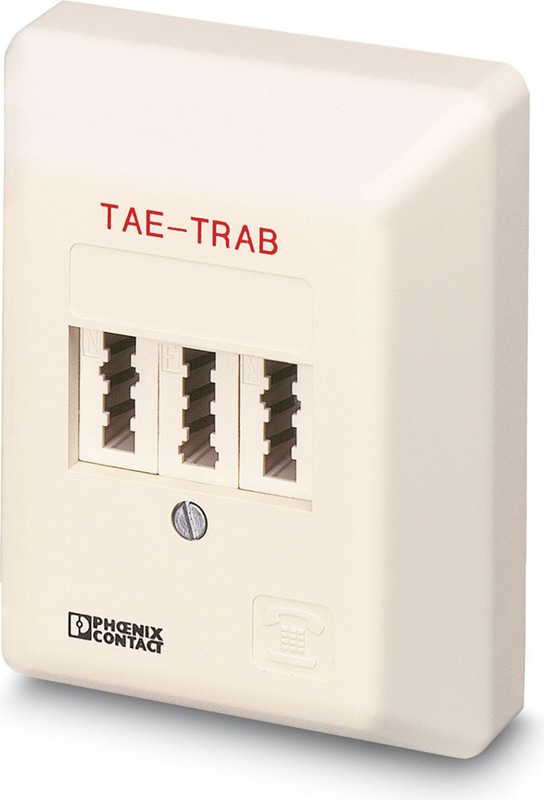

TAE-TRAB FM-NFN-AP - Surge protection device
TAE outlet box (NFN) for surface mounting with surge protection for analog and digital telecommunications interfaces (VDSL up to 50 Mbps, on short paths (< 300 m) up to 100 Mbps)
- Easy connection via TAE socket
- Easy installation with surface mounting
- No signal interference with adapted protective circuit
Technical Specifications
Product properties
| Product family | DATATRAB |
| IEC test classification | B2 |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
| Type | Socket for surface mounting |
| For country-specific use in | D |
| Surge protection fault message | none |
| Wire pairs per module | 1 |
Insulation characteristics
| Overvoltage category | II |
Electrical properties
| Nominal voltage UN | 60 V DC |
Connection data
| Connection Method | Screw connection & TAE 6 |
| Screw thread | M3 |
| Tightening torque | 0.5 Nm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 |
Dimensions
| Width | 65 mm |
| Height | 27 mm |
| Depth | 80 mm |
Material specifications
| Color | cream (RAL 9001) |
| Housing Material | ABS |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 185 V DC |
| Rated current | 450 mA (≤ 40°C) |
| Operating effective current IC at UC | ≤ 10 µA |
| Residual current IPE | ≤ 6 µA |
| Nominal discharge current In (8/20) µs (line-line) | 5 kA |
| Nominal discharge current In (8/20) µs (line-ground) | 5 kA |
| Total discharge current Itotal (8/20) µs | 10 kA |
| Total discharge current Itotal (10/350) µs | 5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 5 kA |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
| Nominal pulse current Ian (10/700) µs (line-line) | 150 A |
| Nominal pulse current Ian (10/700) µs (line-earth) | 150 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 250 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 450 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 250 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 450 V |
| Voltage protection level Up (line-line) | ≤ 250 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-line) | ≤ 250 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-line) | ≤ 250 V (B2 - 4 kV / 100 A) |
| Voltage protection level Up (line-earth) | ≤ 500 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Up (line-earth) | ≤ 450 V (C1 - 1 kV / 500 A) |
| Voltage protection level Up (line-earth) | ≤ 400 V (B2 - 4 kV / 100 A) |
| Response time tA (line-line) | ≤ 1 ns |
| Response time tA (line-earth) | ≤ 100 ns |
| Input attenuation aE, sym. | 0.3 dB (≤ 1 MHz / 150 Ω) |
| Input attenuation aE, sym. | 0.3 dB (≤ 400 kHz / 600 Ω) |
| Input attenuation aE, asym. | 0.3 dB (≤ 400 kHz / 600 Ω) |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 8 MHz |
| Cut-off frequency fg (3 dB), sym. in 600 Ω system | typ. 2 MHz |
| Capacity (core-core) | typ. 200 pF (f = 1 MHz / VR = 0 V) |
| Capacity (core-earth) | typ. 15 pF (f = 1 MHz / VR = 0 V) |
| Resistance per path | 2.2 Ω 10 % |
| Short-circuit current self-quenching | 150 mA |
| Surge protection fault message | none |
| Impulse durability (line-line) | C2 - 10 kV / 5 kA |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Impulse durability (line-line) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | C2 - 10 kV / 5 kA |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Impulse durability (line-earth) | D1 - 2.5 kA |
| Alternating current carrying capacity (line-earth) | 5 A - 1 s |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
Standards and Regulations
| VDE requirement class | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C2 |
| VDE requirement class | C3 |
| VDE requirement class | D1 |
Air clearances and creepage distances
| Standards/regulations | VDE 0110-1 / IEC 60664-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/specifications | DIN EN 61643-21 |
| Note | 2002 |
| Standards/specifications | IEC 61643-21 |
| Note | 2000 |
Mounting
| Mounting Type | Surface/Wall mounting |
