2746391
Official DistributorSKU
PHX2746391
MPN
IBS UART
Weight
0.004 kg
This product is Not Cancellable/Not Returnable

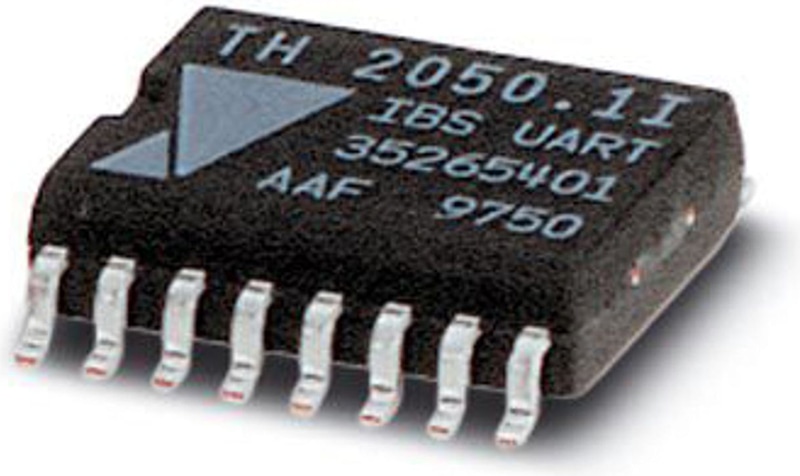

IBS UART - Master protocol chip
Protocol chip, in SOP 16 housing
Technical Specifications
Electrical properties
| IC power supply voltage | 5 V DC ±10 % (DC) |
Supply
| Typical current consumption | 10 mA (all inputs static, outputs unused) |
INTERBUS
| Connection Method | Remote bus/local bus |
User interface
| Connection Method | V.24, 1 start bit, 2 stop bits, 8 data bits, even parity |
Dimensions
| Width | 11 mm |
| Height | 10 mm |
Ambient conditions
| Degree of Protection | IP00 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
Accessories
IBS UART SDS - Socket driver source code for IBS ECO-LINK and master protocol chip IBS UART (software and documentation D/GB)
