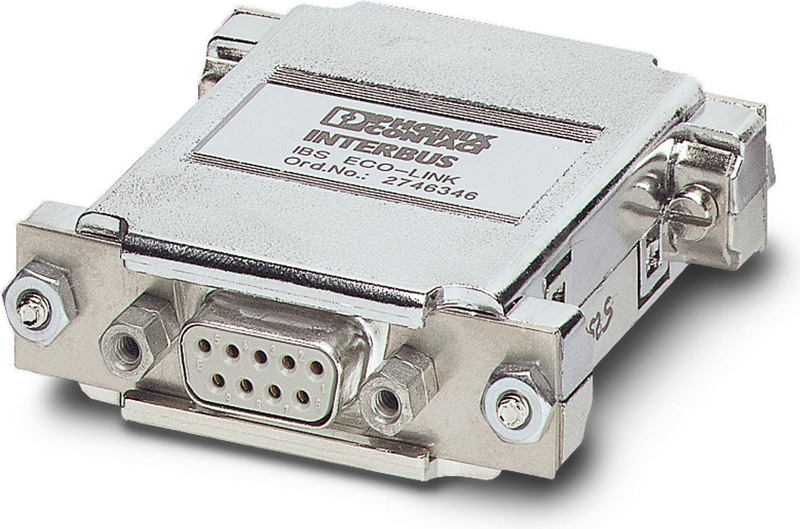

IBS ECO-LINK - Termination board
INTERBUS Master Interface including: - Driver software for DOS and Windows - User documentation in German and English - Monitor programs - Cable for the power supply
Technical Specifications
System properties
| Control system | All computer systems with a serial interface |
| Operating system | Windows 2000 |
| Operating system | Windows 95/98 |
| Operating system | Windows NT |
| Operating system | Windows XP |
| Operating system | DOS |
INTERBUS-Master
| Number of parameter data | 62 Byte (in preparation) |
| Number of devices with parameter channel | 62 |
INTERBUS-Slave
| Type | INTERBUS master |
Local diagnostics
| Optical representation | Operating status LED (power supply, V.24 communication) |
Module
| Protocol chip | IBS-UART |
Functionality
| Control system | All computer systems with a serial interface |
System requirements
| Application interface | ECO-LINK API |
| Driver | Windows 2000 |
| Driver | Windows 95/98 |
| Driver | Windows NT |
| Driver | Windows XP |
| Driver | DOS |
Electrical properties
| Local diagnostics | Operating status LED (power supply, V.24 communication) |
| Transmission medium | Copper |
| Maximum power dissipation for nominal condition | max. 0.55 W |
Supply
| Supply Voltage | 5 V DC 5 % |
| Power supply connection | 3-pos. circular connector, via external voltage supply |
| Typical current consumption | typ. 110 mA (all inputs static, outputs unused) |
Counter:
| Number of Inputs | 0 |
| Input Frequency | 0 kHz |
Pulse direction
| Number of pulse direction outputs | 0 |
| Limit frequency | 0 kHz |
Interfaces
| User interface | V.24, 1 start bit, 2 stop bits, 8 data bits, even parity, max. baud rate: 115.2 kbps |
Control system
| Connection Method | Serial interface (V.24), data backup, parity (even) |
| Transmission Speed | max. 115,2 kBit/s |
INTERBUS remote bus
| Connection Method | 9-pos. D-SUB socket |
| Transmission Speed | 500 kbps / 2 Mbps2 Mbps (can be switched) |
Parameterization/operation/diagnostics
| Connection Method | Socket driver, diagnostics LED |
Dimensions
| Width | 18 mm |
| Height | 56 mm |
| Depth | 65 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % (95 % infrequently, non-condensing) |
| Permissible humidity (storage/transport) | 5 % (95% infrequently, no condensation) |
| Air pressure (operation) | 860 hPa ... 1080 kPa (up to 3000 m above sea level) |
| Air pressure (storage/transport) | 860 hPa ... 1080 kPa (up to 3000 m above sea level) |
Mounting
| Mounting Type | In the host system |
Accessories
PSM-VLTG-USB/PS2/0,5 - Adapter set with 0.5 m cable, to supply the PSI Bluetooth RS-232 adapter from a USB or PS2 interface
IBS UART SDS - Socket driver source code for IBS ECO-LINK and master protocol chip IBS UART (software and documentation D/GB)
