2742146
Official DistributorSKU
PHX2742146
Weight
0.958 kg

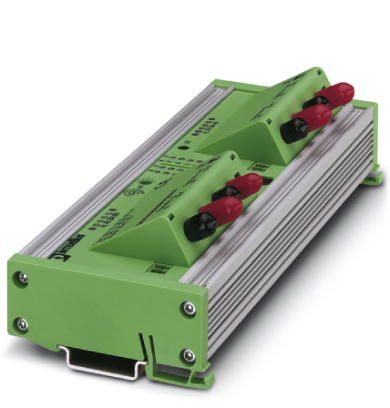

Coupling module - IBS CT 24 IO GT-LK-OPC
Coupling module (Gateway) degree of protection IP20, with fiber optic remote bus connection
- Remote bus connections using fiber optic technology
- Electrical isolation
- Diagnostic and status indicators
- DIN rail mount
Technical Specifications
Dimensions
| Width | 204 mm |
| Height | 77 mm |
| Depth | 37 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
Interfaces
| Interface | INTERBUS remote bus (incoming/outgoing) |
| Connection Method | F-SMA connector |
| Transmission Speed | 500 kbps / 2 Mbps |
Power supply
| Typical current consumption | 150 mA |
| Max. current consumption | 200 mA |
| Supply Voltage | 24 V DC |
| Supply Voltage Range | 19.2 V DC ... 30 V DC |
INTERBUS data
| Maximum distance to the next remote bus device | 300 m |
General
| Weight | 240 g |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
