ME 22,5 F-UTG TBUS GN
Weight
0.039 kg
Series ME
ME 22,5 F-UTG TBUS GN - Mounting base housing

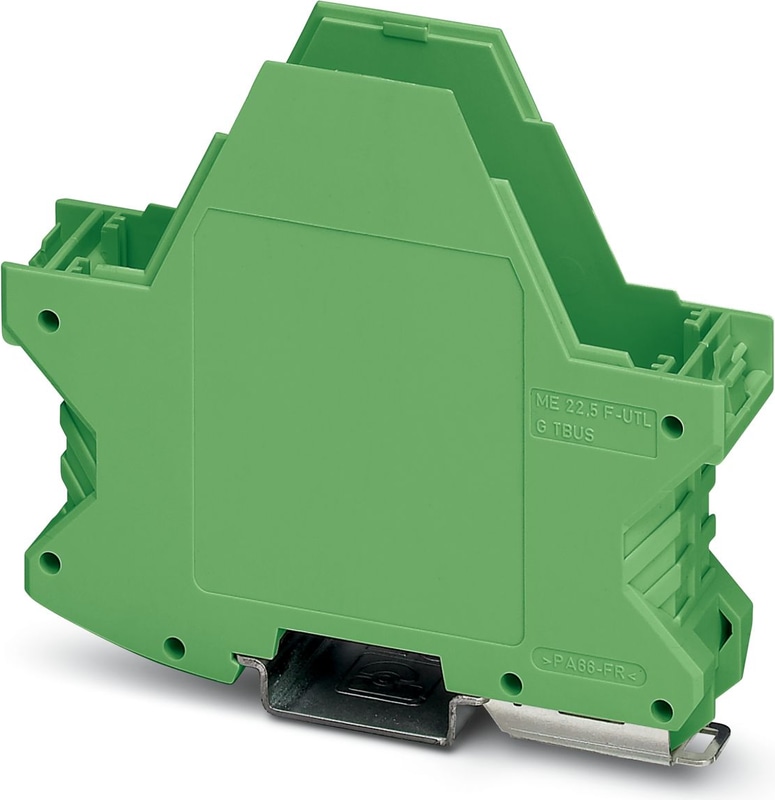

Component housing, Flat design, without vents, width: 22.6 mm, height: 99 mm, depth: 84.8 mm, cross connection: DIN rail bus connector, number of positions cross connector: 5
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
| Recommendation | Material of contact pads for bus connector, galvanic gold (hard gold) |
Product properties
| Housing type | Component housing |
| Type | V0 |
| Number of Positions | 16 |
| Number of Positions | 24 |
| Type | Flat design |
| Ventilation openings present | no |
Dimensions
| Width | 22.6 mm |
| Height | 99 mm |
| Depth | 84.8 mm |
| Depth from top edge of DIN rail | 77.3 mm |
| Depth from top edge of DIN rail to support point on upper part | 46 mm |
Material specifications
| Color | green (5021) |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Polyamide |
Power dissipation single housing for 20 °C
| Ambient Temperature | 20 °C |
| Reduction factor | 1 |
| Mounting Position | vertical |
| Power dissipation | 5.5 W |
Power dissipation single housing for 30 °C
| Ambient Temperature | 30 °C |
| Reduction factor | 0.91 |
| Mounting Position | vertical |
| Power dissipation | 5 W |
Power dissipation single housing for 40 °C
| Ambient Temperature | 40 °C |
| Reduction factor | 0.81 |
| Mounting Position | vertical |
| Power dissipation | 4.4 W |
Power dissipation single housing for 50 °C
| Ambient Temperature | 50 °C |
| Reduction factor | 0.7 |
| Mounting Position | vertical |
| Power dissipation | 3.8 W |
Power dissipation single housing for 60 °C
| Ambient Temperature | 60 °C |
| Reduction factor | 0.57 |
| Mounting Position | vertical |
| Power dissipation | 3.1 W |
Power dissipation single housing for 70 °C
| Ambient Temperature | 70 °C |
| Reduction factor | 0.49 |
| Mounting Position | vertical |
| Power dissipation | 2.7 W |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 Hz ... 58.1 Hz) |
| Acceleration | 2g (58.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Glow-wire test
| Specification | IEC 60695-2-11:2014-02 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Thermal stability / ball thrust test
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
Mechanical strength / tumbling barrel
| Specification | IEC 60998-1:2002-12 |
| Height of fall | 50 cm |
| Frequency | 10 |
Shocks
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Degree of protection (IP code)
| Specification | IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08 |
Ambient conditions
| Max. IP code to attain | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
PCB data
| Number of PCB holders | 1 |
Mounting
| Mounting Type | DIN rail mounting |
| Mounting Position | Vertical (horizontal DIN rail) |
