2700307
Official DistributorSKU
PHX2700307
MPN
WP 07T/WS
Weight
1.53 kg
This product is Not Cancellable/Not Returnable
Series WP

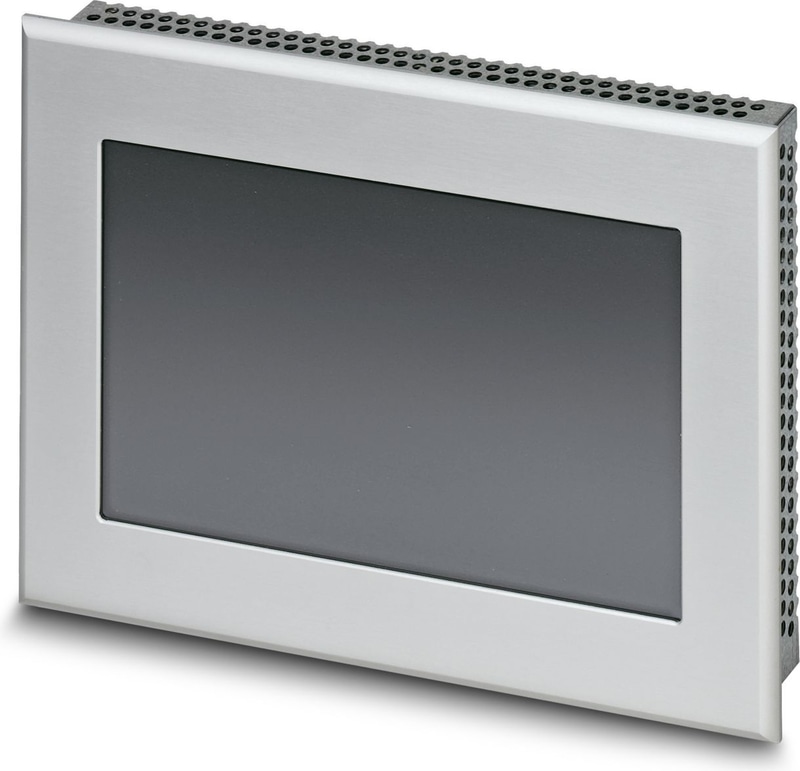

WP 07T/WS - Web panel
Web panel with 17.8 cm/7" TFT active display (analog resistive (polyester)), 800 x 480 pixel(s) (WVGA), 65536 colors, Arm9™, 200 MHz, 2x USB host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows® CE 5.0 and user software: MicroBrowser. (bus system: without)
- Easy device replacement - the visualization project is saved on the PLC (web server)
- Micro browser (WebVisit client) integrated as standard in all devices
- Display available in sizes from 8.9 cm (3.5") to 38.1 cm (15")
- Short startup time
- Easy installation, low installation depth, and compact design
- Low maintenance costs - projects are only adapted once
Technical Specifications
Computer data
| Processor | Arm9™, 200 MHz |
| Operating system | Windows® CE 5.0 |
| RAM | 64 MB SDRAM |
| Data storage system | Flash, 32 MB |
Display
| Display type | 17.8 cm / 7"-TFT |
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Touch technology | analog resistive (polyester) |
| Display lighting type | LED |
| Brightness | 350 cd/m², typical (adjustable) |
| MTBF | > 50000 h |
| Color spectrum | 65536 colors |
Interfaces
| Interfaces | 2x USB Host 2.0 |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Bus system | without |
System properties
| User software | MicroBrowser |
Supply
| Power Supply Unit | 24 V DC ±20 % |
Mounting
| Mounting Type | Front mounting |
Material specifications
| Material front plate | Aluminum (natural anodized) |
| Housing Material | Steel sheet, zinc-plated |
Ambient conditions
| Degree of Protection | IP65 (front), IP20 (back) |
| Degree of Protection | NEMA 4X |
| Ambient Temperature (Operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
| Shock | DIN EN 60068-2-27 |
| Vibration (Operation) | DIN EN 60068-2-6 |
Dimensions
| Width | 203 mm |
| Height | 147 mm |
| Depth | 59 mm |
External dimensions
| Width / Height / Depth | 203 mm / 147 mm / 5 mm (Dimensions of the front plate) |
Installation dimensions
| Width / Height / Installation depth | 195 mm / 139 mm / 54 mm (Installation cutout) |
Accessories
7" DISPLAY PROTECTIVE FOIL, Protective film set comprising 10 pieces of film for a 7" display. Including a squeegee to apply film and instructions.
HMI SCB MOUNTING KIT 6 - HMI mounting kit for installation on a front plate. The mounting kit includes 6 x mounting brackets, 6 x screw threads, and a hexagonal wrench.
