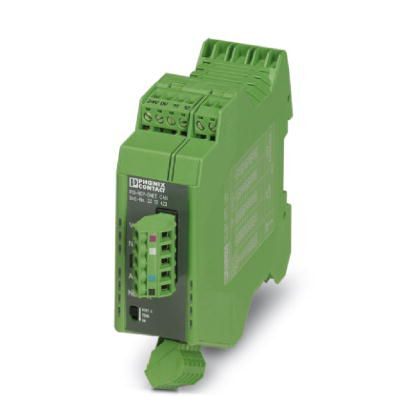

Repeater - PSI-REP-DNET CAN
Modular repeater for electrical isolation and increasing the range for DeviceNet/SDS/CANopen, data rate of up to 1 Mbps. High-quality electrical isolation between the interfaces, DIN-rail mountable, 24 V DC supply.
- Automatic data rate detection or fixed data rate setting via DIP switches
- Data rates of up to 1 Mbps
- High-quality 4-way isolation between all interfaces
- Can be combined with PSI-MOS FO converters in a modular way thanks to DIN rail connectors
- All connections can be plugged in using a COMBICON screw terminal block
- Approved for use in zone 2
- Shipbuilding approval in accordance with DNV GL
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
| Utilization restriction | Use in potentially explosive areas is not permitted in China. |
Dimensions
| Caption | Housing dimensions |
| Width | 35 mm |
| Height | 111 mm |
| Depth | 121 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Degree of Protection | IP20 |
| Noise immunity | EN 61000-6-2 |
General
| Bit delay | One telegram length (EXTENDED) |
| Bit distortion, input | ± 35 % |
| Bit distortion, output | < 6.25 % |
| Electrical isolation | VCC // TBUS // CAN A // CAN B |
| Test voltage data interface/power supply | 1.5 kVrms (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Noise emission | EN 55011 |
| Mounting Type | DIN rail mounting |
| Net weight | 233.466 g |
| Housing Material | PA 6.6-FR |
| Color | green |
| MTBF | 823 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| MTBF | 170 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) |
| MTTF | 1091 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 514 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 208 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
Power supply
| Nominal Supply Voltage | 24 V DC |
| Supply Voltage Range | 10 V DC ... 30 V DC (via pluggable COMBICON screw terminal block) |
| Max. current consumption | 80 mA |
| Max. current consumption | ≤ 2 A (For operation in a connection station, via the DIN rail connector) |
| Typical current consumption | 55 mA (24 V DC) |
Interfaces
| Interface 1 | CAN interface, in accordance with ISO/IS 11898 for DeviceNet, CAN, CANopen |
| Operating mode | Semi-duplex |
| No. of ports | 2 (CAN_High / CAN_Low) |
| Connection Method | COMBICON plug-in screw terminal block |
| File format/coding | Bit stuffing, NRZ |
| Transmission medium | 2-wire twisted pair, shielded |
| Transmission method | CSMA/CA |
| Transmission length | ≤ 5000 m (Dependent on the data rate and the protocol used) |
| Number of bus devices | ≤ 64 (per potential segment) |
| Number of bus devices | ≤ 63 (DeviceNet™, can be addressed logically) |
| Number of bus devices | ≤ 128 (CANopen®, can be addressed logically) |
| Termination resistor | 124 Ω (Integrated and ready to be switched) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Transmission Speed | ≤ 1 Mbps (Configurable via DIP switches) |
| Interface 2 | CAN interface, in accordance with ISO/IS 11898 for DeviceNet, CAN, CANopen |
| Operating mode | Semi-duplex |
| No. of ports | 2 (CAN_High / CAN_Low) |
| Connection Method | COMBICON plug-in screw terminal block |
| File format/coding | Bit stuffing, NRZ |
| Transmission medium | 2-wire twisted pair, shielded |
| Transmission method | CSMA/CA |
| Transmission length | ≤ 5000 m (Dependent on the data rate and the protocol used) |
| Number of bus devices | ≤ 64 (per potential segment) |
| Number of bus devices | ≤ 63 (DeviceNet™, can be addressed logically) |
| Number of bus devices | ≤ 128 (CANopen®, can be addressed logically) |
| Termination resistor | 124 Ω (Integrated and ready to be switched) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
Function
| Status and diagnostic indicators | LEDs: VCC (supply voltage), NET A (Mod/Net status port A), NET B (Mod/Net status port B), ACT (activity/data traffic) |
Digital outputs
| Output name | Relay output |
| Number of Outputs | 1 |
| Contact Type | N/O contact |
| Minimum Switching Voltage | 10 V DC |
| Maximum Switching Voltage | 30 V DC |
| Limiting Continuous Current | 500 mA |
Conformance/approvals
| Designation | CE |
| Certificate | CE-compliant |
| Designation | EAC |
| Identification | EAC |
| Designation | ATEX |
| Identification | ??? II 3 G Ex nA IIC T4 Gc X |
| Additional text | Please follow the special installation instructions in the documentation! |
| Designation | UL, USA / Canada |
| Identification | 508 Listed |
| Designation | Corrosive gas test |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
| Designation | Shipbuilding |
| Identification | DNV GL |
| Temperature | B |
| Humidity | A |
| Vibration | A |
| EMC | B |
| Enclosure | Required protection according to the Rules shall be provided upon installation on board |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Type of test | Free fall in acc. with IEC 60068-2-32 |
| Test result | 1 m |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | 15g, 11 ms period, half-sine shock pulse |
| Noise emission | EN 55011 |
| Noise immunity | EN 61000-6-2 |
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV |
| Standards/regulations | EN 61000-4-3 |
| Frequency Range | 80 MHz ... 3 GHz |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV |
| Standards/regulations | EN 55011 |
| Standards/regulations | EN 61000-4-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2866983 - Please use the following item in new systems: 2904614Primary-switched MINI POWER power supply for DIN rail mounting, input: 1-phase, output: 24 V DC/1.5 A
2709561 - DIN rail connector for DIN rail mounting. Universal for TBUS housing. Gold-plated contacts, 5-pos.
1511504 - Bus system cable, CANopen®, DeviceNet™, 4-position, PUR halogen-free, red lilac RAL 4001, shielded (Tinned copper braided shield), cable length: Free entry (0.5 ... 400 m)
2902322 - D-SUB connector, 9-pos., socket, with Pg-D-SUB pin, assignment: 2, 3, 5, 7; 9; two M12 cable entries (A-coded) under 90°. Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.
2902323 - D-SUB connector, 9-pos., socket, assignment: 2, 3, 5, 7, 9; two M12 cable entries (A-coded) under 90°. Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.
2902324 - D-SUB connector, 9-pos., socket, with Pg-D-SUB pin, assignment: 2, 3, 5, 7; 9; two M12 cable entries (A-coded) under 35°. Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.
2902325 - D-SUB connector, 9-pos., socket, assignment: 2, 3, 5, 7, 9; two M12 cable entries (A-coded) under 35°. Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.
2902326 - D-SUB connector, 9-pos., socket, assignment: 2, 3, 5, 7, 9; two M12 cable entries (A-coded) under 180° (axial). Bus system: CAN, CANopen®. Termination resistor via separate M12 terminator.
2744694 - D-SUB connector, 9-pos. female connector, two 35° cable entries to one terminal block row, bus system: CAN, CANopen®, SafetyBUS p up to 1 Mbps, termination resistor can be switched on via slide switch, pin assignment: 2, 3, 7; screw connection terminal blocks
2708119 - D-SUB connector, 9-pos. socket, 35° cable entry, bus system: CAN, CANopen®, SafetyBUS p up to 1 Mbps, with PG D-SUB socket for connecting a programming device, termination resistor can be switched on via slide switch, pin assignment: 2, 3, 7, 9; screw terminal blocks
2306566 - D-SUB connector, 9-pos. female connector, axial version with two cable entries, bus system: CAN, CANopen, SafetyBUS p; pin assignment: 2, 3, 7; screw connection terminal blocks
