Phoenix Contact 2296867
AllPLC & HMISystem cabling for controllersAccessories

2296867

Official Distributor

By Phoenix Contact

SKU
PHX2296867
MPN
PLC-VT/ACT/LA
Weight
0.034 kg

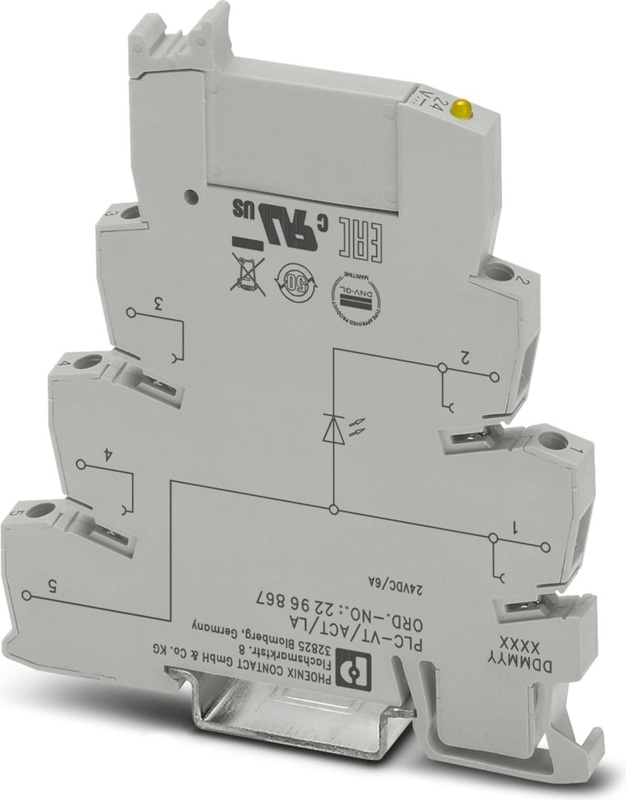

PLC-VT/ACT/LA - Feed-through terminal block

VARIOFACE feed-through terminal block (3-conductor screw connection), for PLC-INTERFACE actuator series, with 24 V DC LED display

  • Can be combined with PLC-INTERFACE actuator series
  • With LED as an option
  • Signal path with two additional potential levels for free assignment (3-conductor connection)
Technical Specifications

Notes

Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.

Product properties

Product familyPLC-INTERFACE

Insulation characteristics

InsulationFunctional insulation

Insulation characteristics: Air clearances and creepage distances

InsulationFunctional insulation
Overvoltage categoryII
Pollution degree2

Electrical properties

Operating voltage range18 V DC ... 33.6 V DC
Current (per branch)≤ 6 A
Current (per connection terminal block with bridge shaft)≤ 6 A

Air clearances and creepage distances

Rated Insulation Voltage50 V
Rated surge voltage0.5 kV (1.2/50 μs)

Connection data

Connection MethodScrew connection
Stripping length8 mm
Screw threadM3
Number of Positions5
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Signaling

Status displayYellow LED
Status display presentYes

Item dimensions

Width6.1 mm
Height80 mm
Depth92.5 mm

Material specifications

Colorgray (RAL 7042)
Flammability rating according to UL 94V0

Ambient conditions

Degree of protection (Module)IP20
Degree of protection (Installation location)≥ IP54
Ambient Temperature (Operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 70 °C
Altitude≤ 2000 m

CE

CertificateCE-compliant

UKCA

CertificateUKCA-compliant

Shipbuilding approval

CertificateTAE0000196

DNV GL data

TemperatureD
HumidityA
VibrationB/C
EMCB
EnclosureRequired protection according to the Rules shall be provided upon installation on board

EMC data

Low Voltage DirectiveConformance with Low Voltage Directive
Electromagnetic compatibilityConformance with EMC directive

Air clearances and creepage distances

Standards/regulationsEN IEC 60664-1

Mounting

Mounting TypeDIN rail mounting
Assembly instructionsin rows with zero spacing
Mounting Positionany
Accessories
  • 0801377
    0801377
    NS 35/ 7,5 V2A UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Stainless steel V2A, uncoated, Standard profile, color: silver
  • 0801733
    0801733
    NS 35/ 7,5 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 0801762
    0801762
    NS 35/ 7,5 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • 1201714
    1201714
    NS 35/15 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 1201895
    1201895
    NS 35/15 CU UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), similar to EN 60715, material: Copper, uncoated, Standard profile, color: copper-colored
  • 1201798
    1201798
    NS 35/15-2,3 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile 2.3 mm, color: silver
  • 1201756
    1201756
    NS 35/15 AL UNPERF 2000MM - DIN rail, unperforated, similar to EN 60715, material: Aluminum, uncoated, Standard profile, color: silver
  • 1201730
    1201730
    NS 35/15 PERF 2000MM - DIN rail perforated, Pack of 25 (50 m), similar to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 0801681
    0801681
    NS 35/ 7,5 UNPERF 2000MM - DIN rail, unperforated, Pack of 25 (50 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, Standard profile, color: silver
  • 2966508
    2966508
    PLC-ESK GY - Power terminal block, for the input of up to four potentials, for mounting on NS 35/7.5
  • 2966841
    2966841
    Separating plate - PLC-ATP BK
  • 1204517
    1204517
    Screwdriver - SZF 1-0,6X3,5
  • 1051016
    1051016
    1051016 -
  • 1051003
    1051003
    Zack marker strip - ZB 6:UNBEDRUCKT
  • 5060935
    5060935
    Zack marker strip - ZB 6/WH-100:UNBEDRUCKT
  • 2295554
    2295554
    PLC-V8/FLK14/OUT - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of output cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
  • 2304102
    2304102
    PLC-V8/FLK14/OUT/M - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of output cards, connection 1: IDC/FLK pin strip 1x 14-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: minusschaltend
  • 2296058
    2296058
    PLC-V8/D15S/OUT - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of output cards, connection 1: D-SUB pin strip 1x 15-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
  • 2296061
    2296061
    PLC-V8/D15B/OUT - V8 adapter for 8 x PLC-INTERFACE (6.2 mm), controller: PLC system cabling of output cards, connection 1: D-SUB socket strip 1x 15-position, connection 2: Plug-in connection (Can be snapped onto 8x PLC-INTERFACE terminals), connection 3: Screw connection 1x 2-position, number of channels: 8, control logic: plusschaltend
  • 2966786
    2966786
    FBST 500-PLC RD - Continuous plug-in bridge, length: 500 mm, color: red
  • 2966692
    2966692
    FBST 500-PLC BU - Continuous plug-in bridge, length: 500 mm, color: blue
  • 2966838
    2966838
    FBST 500-PLC GY - Continuous plug-in bridge, length: 500 mm, color: gray
  • 2966236
    2966236
    Single plug-in bridge - FBST 6-PLC RD
  • 2966812
    2966812
    Single plug-in bridge - FBST 6-PLC BU
  • 2966825
    2966825
    Single plug-in bridge - FBST 6-PLC GY
  • 2967688
    2967688
    Single plug-in bridge - FBST 8-PLC GY
