2285577
Official DistributorSKU
PHX2285577
MPN
FRONT-SFL 2,5/F32/ZB
Weight
0.121 kg
Series FRONT-SFL

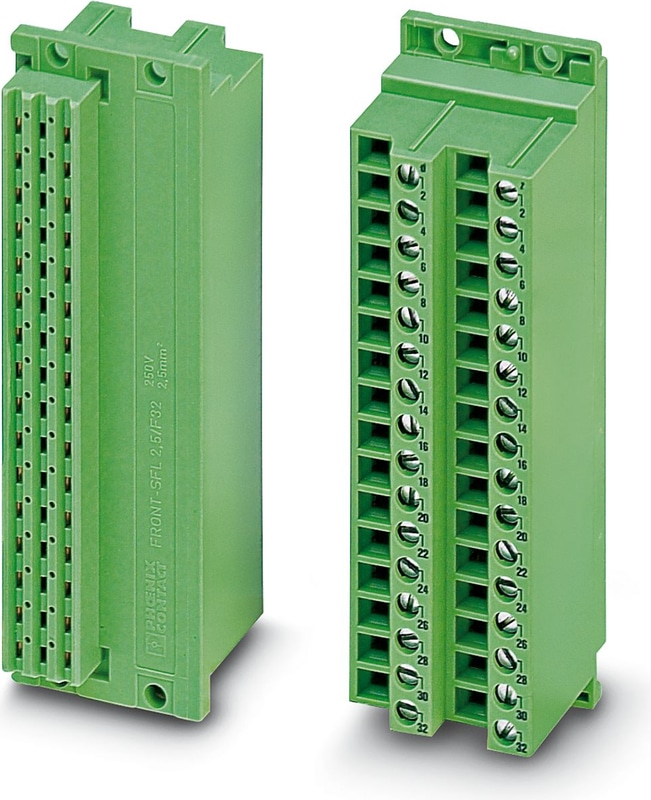

FRONT-SFL 2,5/F32/ZB - Female connector strip
19" socket strip, color: green, number of positions: 32, product range: FRONT-SFL 2,5, pitch: 0 mm, type of packaging: packed in cardboard
Documents
Technical Specifications
Product properties
| Product family | FRONT-SFL 2,5 |
| Type | F |
| Number of Positions | 32 |
| Pitch | 0 mm |
Electrical properties
| Rated surge voltage (III/3) | 4 kV |
Connection data
| Connection Method | Screw connection |
| Stripping length | 10 mm |
| Screw thread | M2,5 |
Dimensions
| Width | 95 mm |
| Height | 35.3 mm |
| Length | 30.1 mm |
| Hole diameter | 2.8 mm |
| Pitch | 0 mm |
Material specifications
| Color (Housing) | green (RAL 6021) |
| Flammability rating according to UL 94 | V2 |
| Insulating material group | I |
| Insulating material | PA |
| Contact surface | Tin Sn |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
Packaging specifications
| Type of packaging | packed in cardboard |
Why Proax for Phoenix Contact 2285577?
Proax is an authorized distributor of Phoenix Contact 2285577 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
