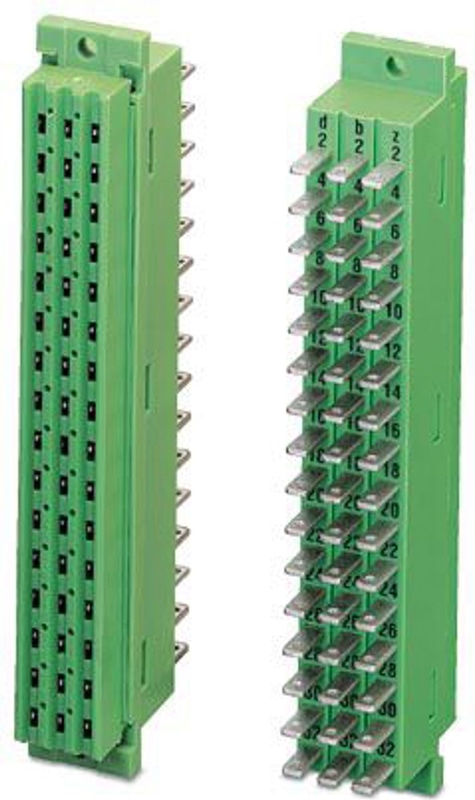

The figure shows the version SFL (2,8-0,8) F 48
2285328
Official DistributorSKU
PHX2285328
MPN
SFL (2,8-0,8)F32/ZD
Weight
0.035 kg
SFL (2,8-0,8)F32/ZD - Female connector strip
19" socket strip, color: green, contact surface: Tin, number of positions: 32, product range: SFL (2,8-0,8), pitch: 0 mm, type of packaging: packed in cardboard
Technical Specifications
Notes
| General | The rated insulation voltage applies to fully insulated slip-on sleeves. |
Product properties
| Product family | SFL (2,8-0,8) |
| Type | F |
| Number of Positions | 32 |
| Pitch | 0 mm |
Electrical properties
| Rated surge voltage (III/3) | 2.5 kV |
Connection data
| Connection Method | Spade connection |
Dimensions
| Width | 95 mm |
| Height | 28.6 mm |
| Length | 14.8 mm |
| Hole diameter | 2.8 mm |
| Pitch | 0 mm |
Material specifications
| Color | green |
| Flammability rating according to UL 94 | HB |
| Insulating material group | II |
| Insulating material | PA-F |
| Contact surface | Tin Sn |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
PT/FS 2,8 - Insulating sleeve, as touch protection, slide onto the conductor before for 2.8 slip-on sleeves
