HK 4-FS(8-2,8-0,8)

Weight

0.011 kg

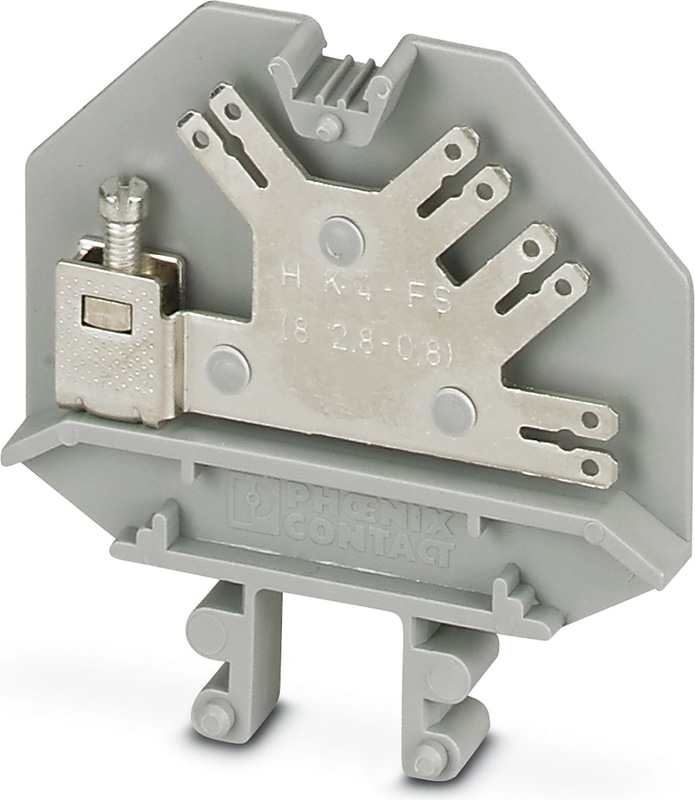

HK 4-FS(8-2,8-0,8) - Feed-through terminal block

Feed-through terminal block, nom. voltage: 800 V, nominal current: 32 A, 1st level connection left, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.2 mm2 - 4 mm2, connection method: Spade connection, mounting: NS 32, color: gray

User-friendly operation, i.e., unobstructed view of plugs, good access to plugs, and fast connection check
Designation read from the front
Attractive appearance due to the elegant conductor conduit in the lateral cable ducts
Terminal blocks and bridge connections eliminated

Product properties

Number of Connections	9
Number of rows	1
Potentials	1

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Electrical properties

Rated surge voltage	8 kV
Maximum power dissipation for nominal condition	1.02 W

Connection data

Number of connections per level	9
Nominal cross section	4 mm²

1st level connection left

Screw thread	M3
Tightening torque	0.6 ... 0.8 Nm
Stripping length	9 mm
Internal cylindrical gage	A3
Conductor cross section rigid	0.2 mm² ... 4 mm²
Cross section AWG	24 ... 12 (converted acc. to IEC)
Conductor cross section flexible	0.2 mm² ... 4 mm²
Conductor cross section, flexible [AWG]	24 ... 12 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)	0.25 mm² ... 4 mm²
Flexible conductor cross section (ferrule with plastic sleeve)	0.25 mm² ... 2.5 mm²
Cross-section with insertion bridge, rigid	4 mm²
Cross-section with insertion bridge, flexible	4 mm²
2 conductors with same cross section, solid	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible	0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve	0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve	0.5 mm² ... 2.5 mm²
Nominal Current	32 A
Maximum Load Current	40 A (with 4 mm² conductor cross section)
Nominal Voltage	800 V
Nominal cross section	4 mm²

Dimensions

Width	6.2 mm
End cover width	2.3 mm
Height	54 mm
Depth on NS 32	56.5 mm

Material specifications

Color	gray
Flammability rating according to UL 94	V2
Insulating material group	I
Insulating material	PA
Static insulating material application in cold	-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))	130 °C
Relative insulation material temperature index (Elec., UL 746 B)	130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24	HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26	HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)	28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)	passed
Specific optical density of smoke NFPA 130 (ASTM E 662)	passed
Smoke gas toxicity NFPA 130 (SMP 800C)	passed

Mechanical data

Open side panel

Yes

Ambient conditions

Ambient Temperature (Operation)	-60 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)	-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)	-5 °C ... 70 °C
Ambient temperature (actuation)	-5 °C ... 70 °C
Permissible humidity (storage/transport)	30 % ... 70 %

Mounting

Mounting Type

NS 32

2002022
D-HK 4 - End cover, depth: 41.5 mm, width: 2.3 mm, height: 54 mm, color: gray
1922022
D-UVK 4 - End cover, width: 2.3 mm, color: gray
1007222
Marker card - SBS 6:UNBEDRUCKT
1205053
Screwdriver - SZS 0,6X3,5
0201142
EB 3- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 3, color: gray
0201155
EB 2- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 2, color: gray
0201139
EB 10- 6 - Insertion bridge, pitch: 6.2 mm, number of positions: 10, color: gray
1201002
NS 32 PERF 2000MM-VPE 10 - DIN rail perforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
1201015
NS 32 UNPERF 2000MM-VPE 10 - DIN rail, unperforated, Pack of 10 (20 m), acc. to EN 60715, material: Steel, galvanized, passivated with a thick layer, G profile, color: silver
3240152
C-SCF 1/2,8X0,5 - Slip-on sleeve, non-insulated, 0.5 ... 1 mm2, 2.8 x 0.5
3240048
C-SCFI 1,5/2,8X0,5 - Slip-on sleeve, red, 0.5 ... 1.5 mm2, 2.8 x 0.5
3240153
C-SCF 1/2,8X0,8 - Slip-on sleeve, non-insulated, 0.5 ... 1 mm2, 2.8 x 0.8
3240049
C-SCFI 1,5/2,8X0,8 - Slip-on sleeve, red, 0.5 ... 1.5 mm2, 2.8 x 0.8
3240156
C-SCF 1,5/6,3X0,8 - Slip-on sleeve, non-insulated, 0.5 ... 1.5 mm2, 6.3 x 0.8
3240052
C-SCFI 1,5/6,3X0,8 - Slip-on sleeve, red, 0.5 ... 1.5 mm2, 6.3 x 0.8
3240159
C-SCF 2,5/6,3X0,8 - Slip-on sleeve, non-insulated, 1.5 ... 2.5 mm2, 6.3 x 0.8
3240055
C-SCFI 2,5/6,3X0,8 - Slip-on sleeve, blue, 1.5 ... 2.5 mm2, 6.3 x 0.8
3240160
C-SCF 6/6,3X0,8 - Slip-on sleeve, non-insulated, 4 ... 6 mm2, 6.3 x 0.8
3240056
C-SCFI 6/6,3X0,8 - Slip-on sleeve, yellow, 4 ... 6 mm2, 6.3 x 0.8
1406700
PT/FS 2,8 - Insulating sleeve, as touch protection, slide onto the conductor before for 2.8 slip-on sleeves
0604707
PT/FS 6,3 - Insulating sleeve, as touch protection, slide onto the conductor before for 6.3 slip-on sleeves
1201442
E/UK - End bracket, Mounting on a DIN rail NS 32 or NS 35, material: PA, color: gray
1201413
E/UK 1 - End clamps, for supporting the ends of double-level and three-level terminal blocks, width: 10 mm, color: gray
