MSTBV 2,5/ 4-GS-5,08
Weight
0.001 kg
This product is Not Cancellable/Not Returnable
Series MSTBV

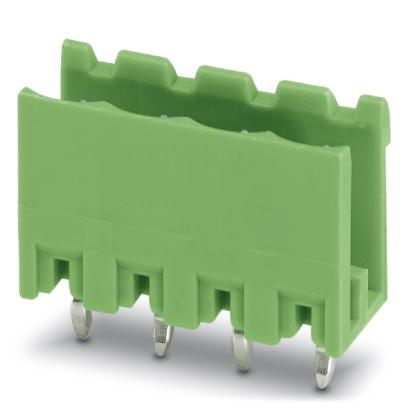

MSTBV 2,5/ 4-GS-5,08 - PCB header
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 12 A, contact surface: Tin, contact connection type: Pin, number of rows: 1, number of positions: 4, product range: MSTBV 2,5/..-GS, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
- Well-known mounting principle allows worldwide use
- Vertical connection enables multi-row arrangement on the PCB
Technical Specifications
Dimensions
| Length [ l ] | 8.6 mm |
| Pitch | 5.08 mm |
| Dimension a | 15.24 mm |
| Constructional height | 12 mm |
| Length of the solder pin | 3.9 mm |
| Length | 8.6 mm |
General
| Range of articles | MSTBV 2,5/..-GS |
| Insulating material group | IIIa |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
| Rated voltage (III/3) | 250 V |
| Rated voltage (III/2) | 320 V |
| Rated voltage (II/2) | 400 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Maximum Load Current | 12 A |
| Insulating material | PBT |
| Flammability rating according to UL 94 | V0 |
| Color | green |
| Number of Positions | 4 |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
CR-MSTB - Coding section, inserted into the recess in the header or the inverted plug, red insulating material
