Official DistributorSKU
MPN
HC-D 4-2ST
Weight
0.013 kg

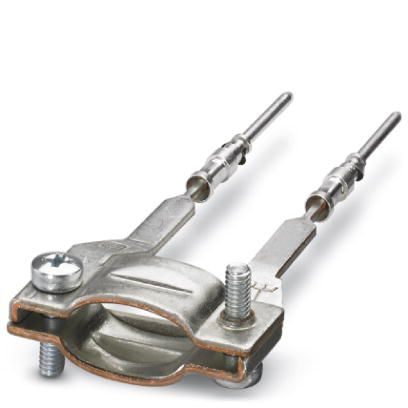

HC-D 4-2ST - Shield connection clamp
Shield connection for two shielded cables on male contact carriers, without loose crimp contacts
Documents
Technical Specifications
Notes
| General | for HC-D40, HC-D64 contact carriers |
Product properties
| Contact material type | turned |
Electrical properties
| Rated voltage (III/3) | 60 V |
Connection technology
| Connection Method | Crimp connection |
Mechanical characteristics
| Contact diameter | 1.6 mm |
Material specifications
| Contact Material | Copper alloy |
| Contact surface material | hard-silver plated |
Cable/line
| External Cable Diameter | 6 mm ... 9 mm |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 60 °C |
Accessories
UNIFOX MT-CK 1.6/2.5 - Assembly tool, for CK 1.6... crimp contacts for small conductor cross sections
CRIMPFOX-TC 4 - Crimping pliers, for CK 1,6-ED..., CK 2,5-ED..., CK 4,0-ED... turned contacts, 4 marked die stations, unlockable pressure lock, lateral entry, incl. positioning tool
Why Proax for Phoenix Contact 1886141?
Proax is an authorized distributor of Phoenix Contact 1886141 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
