Official DistributorSKU
MPN
VC-MP-A4
Weight
0.57 kg
This product is Not Cancellable/Not Returnable
Series VC-MP-A

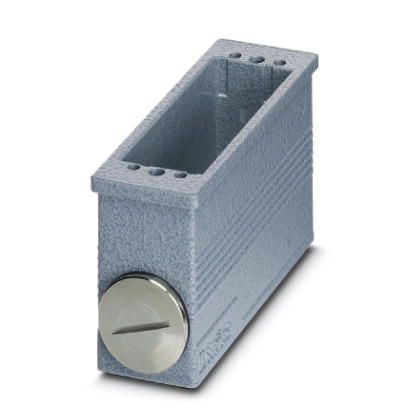

VC-MP-A4 - Housing
Panel mounting base, made of metal, powder-coated type 4, number of modules 5, cable screw connection Pg21
Technical Specifications
Dimensions
| Height | 61 mm |
Ambient conditions
| Degree of Protection | IP65/IP66/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
General
| Note | When using fiber optics, the bending radii of the cable manufacturers must be observed. |
| Type | VC4 |
| Degree of Protection | IP65/IP66/IP67 |
| Locking Type | Screw locking |
| Number of module slots | 5 |
| Housing Material | Zinc die-cast |
| Seal material | EPDM |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
Why Proax for Phoenix Contact 1884432?
Proax is an authorized distributor of Phoenix Contact 1884432 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
