Connector - PV-CM-S 6-16 (-)

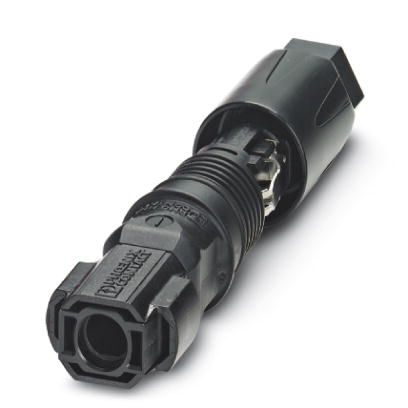

Photovoltaic connector, Range of articles: Sunclix, Connector, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 6 mm², max. conductor cross section: 16 mm², rated voltage: 1500 V DC, rated current: 65 A, Connection method: Spring-cage, Type of contact: Pin, min. cable diameter: 5.5 mm, max. cable diameter: 10 mm
Technical Specifications
Item properties
| Range of articles | Sunclix |
| Brief article description | Connector |
| Product feature | DC connector, 1-pos., pin (-) |
| Color | black |
| Connection Method | Spring-cage |
| Type of contact | Pin |
| Number of Positions | 1 |
Product dimensions
| Width | 23.7 mm |
| Height | 23.7 mm |
| Length | 74.6 mm |
| Rated current | 65 A |
| Rated current | 50 A |
| Rated current | 40 A |
| Rated voltage | 1500 V DCII 3 (in accordance with IEC 62852:2014/AMD1:2020) |
| Protection class | II |
Connection data
| Min. wire cross section | 6 mm² |
| Max. wire cross section | 16 mm² |
| Cable Diameter | 5.5 mm ... 10 mm |
| Stripping length of the individual wire | 18 mm |
| Torque | 3 Nm ±0.1 Nm (Cable gland) |
Environmental data
| Ambient Temperature (Operation) | -40 °C ... 85 °C (dependent on the derating curve) |
| Ambient temperature (assembly) | -25 °C ... 50 °C |
Mechanical tests
| Insertion force | 45 N ±10 N |
Service life tests
| Degree of Protection | IP66 / IP68 (2 m / 24 h) |
| Insertion/withdrawal cycles | 100 |
| Contact Material | Cu alloy silver-plated |
| Halogen-free | yes |
| Contact surface material | Ag |
| Contact Material | Cu |
Detail specification
| Detail specification | IEC 62852 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
