PV-CF-S 2,5-6 (+)
Weight
0.012 kg
PV-CF-S 2,5-6 (+) - Connector

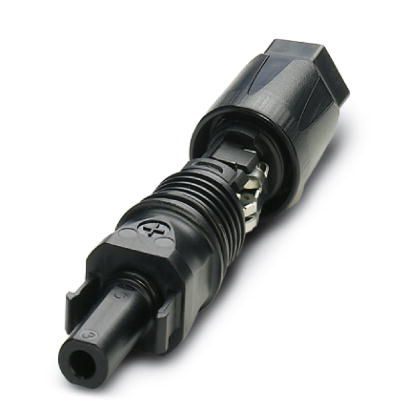

Connector, Range of articles: SUNCLIX, housing material: PPE, color: black, number of positions: 1, min. conductor cross section: 2.5 mm2, max. conductor cross section: 6 mm2, rated voltage: 1100 V DC, rated current: 40 A, Connection method: Spring-cage, Contact connection type: Socket, min. cable diameter: 5.5 mm, max. cable diameter: 8 mm, The follow-up item is 1386381
- Convenient, secure spring connection technology
- High yield, thanks to silver-plated contacts
- Convenient release without a special tool
- One-piece DC connector
Technical Specifications
Item properties
| Range of articles | Sunclix |
| Brief article description | Connector |
| Product feature | DC connector, 1-pos., socket (+) |
| Color | black |
| Connection Method | Spring-cage |
| Type of contact | Socket |
| Number of Positions | 1 |
| Head GRP | Kabelklemmung |
Product dimensions
| Width | 19 mm |
| Height | 19 mm |
| Length | 60.9 mm |
| Rated current | 40 A (in accordance with IEC 62852:2014-11) |
| Rated current | 35 A (in accordance with IEC 62852:2014-11) |
| Rated current | 27 A (in accordance with IEC 62852:2014-11) |
| Rated voltage | 1100 V DCII 2 (in accordance with IEC 62852:2014/AMD1:2020) |
| Protection class | II |
Connection data
| Min. wire cross section | 2.5 mm² |
| Max. wire cross section | 6 mm² |
| Cable Diameter | 5.5 mm ... 8 mm |
| Stripping length of the individual wire | 15 mm |
| Torque | 2 Nm ±0.1 Nm (Cable gland) |
Environmental data
| Ambient Temperature (Operation) | -40 °C ... 85 °C (dependent on the derating curve) |
| Ambient temperature (assembly) | -5 °C ... 50 °C |
| Limiting temperatures_GRP | 110.00 °C |
Mechanical tests
| Insertion force | 45 N ±10 N |
Service life tests
| Degree of Protection | IP66 / IP68 (2 m / 24 h) |
| Insertion/withdrawal cycles | 100 (Test specification: IEC 60512-9-1:2010-03) |
| Contact Material | Cu alloy silver-plated |
| Flammability rating according to UL 94 | V0 |
| RTI | 110 °C Housing |
| Contact surface material | Ag |
| Contact Material | Cu |
| Material | PPE (Housing) |
Detail specification
| Detail specification | IEC 62852 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
PV-C PROTECTION CAP - Protective cap, Range of articles: SUNCLIX, color: black, self-sealing, without interlock, set consisting of: 1 protective cap for connector side and 1 protective cap for coupling side
