HC-B 10-TFQ-45/M1PG16G
Weight
0.149 kg
Series HC-B

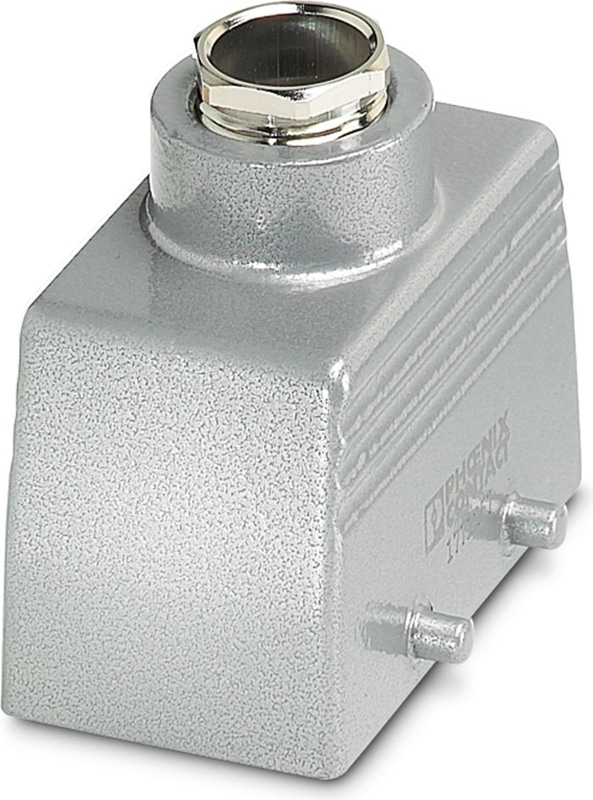

HC-B 10-TFQ-45/M1PG16G - Housing
Sleeve housing, for double locking latch, height 45 mm, with screw connection, 1x Pg16, straight cable entry
HC-B
The Phoenix Contact HC-B Series comprises heavy-duty rectangular connectors engineered for industrial applications requiring robust and reliable power and signal transmission. These connectors are designed to withstand harsh environmental conditions, ensuring secure and efficient connectivity in demanding settings.
- Variety of Sizes: The HC-B Series offers multiple sizes, including B6, B10, B16, and B24, accommodating different space and connection requirements.
- High Number of Positions: Depending on the size, these connectors provide a range of contact positions, such as 6+PE, 10+PE, 16+PE, and 24+PE, facilitating versatile wiring configurations.
- Robust Electrical Specifications: Rated for voltages up to 500 V and currents up to 16 A, the HC-B connectors are suitable for power-intensive applications.
- Durable Construction: Featuring housings made from high-quality materials, these connectors offer excellent resistance to mechanical stress and environmental factors.
- Secure Connection Technologies: The series includes various connection methods, such as screw and push-in connections, ensuring reliable and maintenance-friendly installations.
Technical Specifications
Notes
| General | For contact inserts HC-B10, BB18, DD42, M, K8/24 |
Product properties
| Housing type | Sleeve housing |
| Application | Standard |
| Type | B10 |
| No. of cable outlets | 1 |
| Type of the screw connection | 1x Pg16 |
| Shielded | no |
| Cable outlet | straight |
| Pg screw connection | with |
Dimensions
| Width | 43 mm |
| Height | 45 mm |
| Length | 73 mm |
| Wrench size, union nut | 22 mm |
Material specifications
| Material Screw connection | Brass, nickel-plated |
| Seal material cable seal | NBR |
| Housing Material | die-cast aluminum |
| Housing surface material | Powder-coated, gray |
Mechanical data
| Type of the screw connection | 1x Pg16 |
| Locking Type | Pin |
Cable/line
| External cable diameter Cable 1 | 7.5 mm ... 15 mm |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
