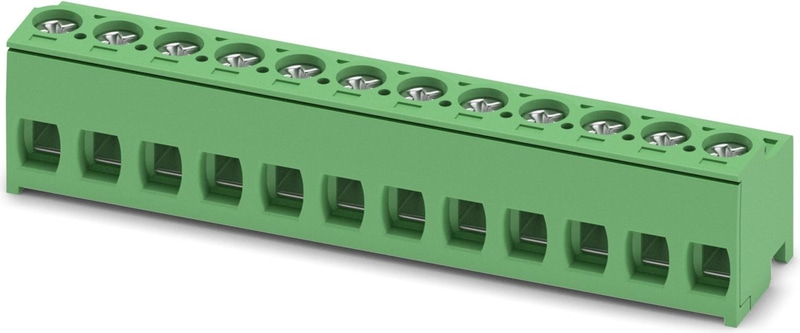

PT 1,5/12-PH-5,0 - PCB connector

PCB connector, nominal cross section: 1.5 mm2, color: green, nominal current: 10 A, rated voltage (III/2): 400 V, contact surface: Tin, contact connection type: Socket, number of potentials: 12, number of rows: 1, number of positions: 12, number of connections: 12, product range: PT 1,5/..-PH, pitch: 5 mm, connection method: Screw connection with tension sleeve, screw head form: H1L Slotted Phillips recess, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PST 1,3, locking: without, mounting: without, type of packaging: packed in cardboard

  • Well-known connection principle allows worldwide use
  • Low temperature rise, thanks to maximum contact force
  • High terminal block capacity thanks to rectangular terminal block space

PT

The Phoenix Contact PT Series comprises feed-through terminal blocks that utilize Push-in connection technology, offering efficient and reliable wiring solutions for various industrial applications. These terminal blocks are designed for straightforward conductor insertion, enhancing installation speed and ensuring secure connections.

  • Push-in Connection Technology: The PT Series employs a direct plug-in method, allowing solid conductors or conductors with ferrules to be inserted easily without the need for tools. This design facilitates quick and reliable wiring.
  • Compact Design: The terminal blocks feature a space-saving form factor, making them suitable for applications where installation space is limited.
  • High Electrical Ratings: Depending on the specific model, the PT Series terminal blocks can handle nominal voltages up to 800 V and nominal currents up to 32 A, accommodating a wide range of electrical requirements.
  • Versatile Conductor Compatibility: These terminal blocks support various conductor types and sizes, providing flexibility in wiring configurations.
  • Integration with CLIPLINE Complete System: The PT Series is compatible with Phoenix Contact's CLIPLINE complete system, allowing for standardized bridging, marking, and testing accessories, which simplifies inventory management and enhances system modularity.
Technical Specifications

Product properties

Product familyPT 1,5/..-PH
Product lineCOMBICON Connectors S
TypePlug for pin strip
Number of Positions12
Pitch5 mm
Number of Connections12
Number of rows1
Number of potentials12
Mounting flangewithout

Electrical properties

Nominal current IN10 A
Nominal voltage UN400 V
Degree of pollution3
Contact resistance2.2 mΩ
Rated voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated surge voltage (II/2)4 kV

Connection technology

TypePlug for pin strip
Connector systemCOMBICON PST 1,3
Nominal cross section1.5 mm²
Contact connection typeSocket

Interlock

Locking Typewithout
Mounting flangewithout

Conductor connection

Connection MethodScrew connection with tension sleeve
Conductor/PCB connection direction0 °
Conductor cross section rigid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG26 ... 12
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 1 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 1 mm²
Stripping length6 mm
Tightening torque0.35 Nm ... 0.4 Nm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Color (Housing)green (6021)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions

Pitch5 mm
Width [w]60 mm
Height [h]13.15 mm
Length [l]12.2 mm

Mounting

Drive form screw headSlotted Phillips recess (H1L)

Test for conductor damage and slackening

SpecificationIEC 60999-1:1999-11
ResultTest passed

Pull-out test

SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / solid / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / flexible / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value2.5 mm² / solid / > 50 N
Conductor cross section/conductor type/tractive force setpoint/actual value2.5 mm² / flexible / > 50 N

Insertion and withdrawal forces

ResultTest passed
No. of cycles10
Insertion strength per pos. approx.4.5 N
Withdraw strength per pos. approx.5.5 N

Torque test

SpecificationIEC 60999-1:1999-11

Resistance of inscriptions

SpecificationIEC 60068-2-70:1995-12
ResultTest passed

Visual inspection

SpecificationIEC 60512-1-1:2002-02
ResultTest passed

Dimension check

SpecificationIEC 60512-1-2:2002-02
ResultTest passed

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h

Durability test

SpecificationIEC 60512-5:1992-08
Impulse withstand voltage at sea level4.8 kV
Contact resistance R12.2 mΩ
Contact resistance R22.4 mΩ
Insertion/withdrawal cycles10

Climatic test

SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage2.21 kV

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C

Thermal test | Test group C

SpecificationIEC 60512-5-1:2002-02
Tested number of positions16

Insulation resistance

SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions1 GΩ

Air clearances and creepage distances |

SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
minimum clearance value - non-homogenous field (III/3)3 mm
minimum creepage distance (III/3)3.2 mm
Rated insulation voltage (III/2)400 V
Rated surge voltage (III/2)4 kV
minimum clearance value - non-homogenous field (III/2)3 mm
minimum creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated surge voltage (II/2)4 kV
minimum clearance value - non-homogenous field (II/2)3 mm
minimum creepage distance (II/2)3.2 mm

Packaging specifications
