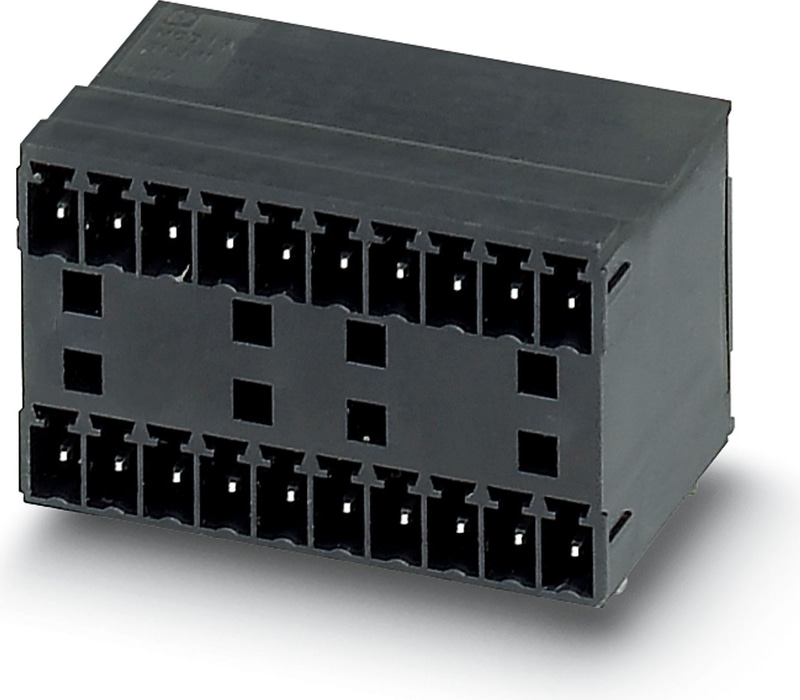

The figure shows a 10-pos. version with 20 contacts
Official DistributorSKU
MPN
MCD 1,5/ 4-G1-3,81HTBKPIN2 TR
Weight
0.01 kg
This product is Not Cancellable/Not Returnable
Series MCD
MCD 1,5/ 4-G1-3,81HTBKPIN2 TR - PCB header
PCB headers, nominal cross section: 1.5 mm2, color: black, nominal current: 8 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Pin, number of potentials: 8, number of rows: 2, number of positions: 4, number of connections: 8, product range: MCD 1,5/..-G1-HT, pitch: 3.81 mm, mounting: THR soldering, number of solder pins per potential: 1, plug-in system: COMBICON MC 1,5, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
- Designed for integration into the SMT soldering process
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
- Conductor connection on several levels enables higher contact density
Technical Specifications
Product properties
| Product family | MCD 1,5/..-G1-HT |
| Product line | COMBICON Connectors S |
| Number of Positions | 4 |
| Pitch | 3.81 mm |
| Number of Connections | 8 |
| Number of rows | 2 |
| Number of potentials | 8 |
| Mounting flange | without |
| Solder pins per potential | 1 |
Electrical properties
| Nominal current IN | 8 A |
| Nominal voltage UN | 160 V |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 160 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated voltage (II/2) | 320 V |
| Rated surge voltage (II/2) | 2.5 kV |
Mounting
| Mounting Type | THR soldering |
Processing notes
| Process | Reflow/wave soldering |
| Moisture Sensitive Level | MSL 4 |
| Classification temperature Tc | 240 °C |
| Solder cycles in the reflow | 3 |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface contact area (top layer) | Tin (3 - 5 µm Sn) |
| Metal surface contact area (middle layer) | Nickel (1.3 - 3 µm Ni) |
| Metal surface soldering area (top layer) | Tin (3 - 5 µm Sn) |
| Metal surface soldering area (middle layer) | Nickel (1.3 - 3 µm Ni) |
Material data - housing
| Color () | () |
| Insulating material | PA |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 325 |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Pitch | 3.81 mm |
| Pin dimensions | 0.8 x 0.8 mm |
PCB design
| Hole diameter | 1.4 mm |
Air clearances and creepage distances |
| Insulating material group | IIIa |
| Rated insulation voltage (III/3) | 160 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated insulation voltage (II/2) | 320 V |
| Rated surge voltage (II/2) | 2.5 kV |
Packaging specifications
| Type of packaging | packed in cardboard |
