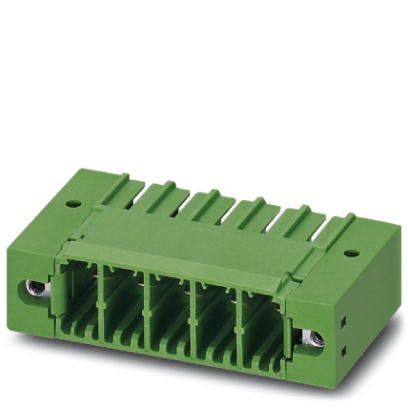

The figure shows a 5-pos. version of the product
1720806
Official DistributorSKU
PHX1720806
MPN
PC 5/ 3-GF-7,62
Weight
0.011 kg
Series PC
PC 5/ 3-GF-7,62 - PCB header
PCB headers, nominal cross section: 6 mm2, color: green, nominal current: 41 A, rated voltage (III/2): 630 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: PC 5/..-GF, pitch: 7.62 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 5 mm, number of solder pins per potential: 3, plug-in system: COMBICON PC 5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard
- Well-known mounting principle allows worldwide use
- Screwable flange for superior mechanical stability
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
Technical Specifications
Item properties
| Brief article description | PCB header |
| Connector system | POWER COMBICON 5 |
| Type of contact | Male connector |
| Range of articles | PC 5/..-GF |
| Pitch | 7.62 mm |
| Number of Positions | 3 |
| Mounting Type | Wave soldering |
| Pin layout | Linear pinning |
| Locking | Threaded flange |
| Number of rows | 1 |
| Number of Connections | 3 |
| Number of potentials | 3 |
| Pin connector pattern alignment | Standard |
Electrical parameters
| Nominal Current | 41 A |
| Nom. voltage | 630 V |
| Rated voltage (III/3) | 630 V |
| Rated voltage (III/2) | 630 V |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 6 kV |
| Rated surge voltage (III/2) | 6 kV |
| Rated surge voltage (II/2) | 6 kV |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface contact area (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Housing color | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Flange specifications
| Type of locking | Screw locking |
Dimensions for the product
| Caption | Schematische Abbildung - weitere Details siehe Produktfamilienzeichnung im Download Center |
| Length [ l ] | 29.25 mm |
| Width [ w ] | 38.96 mm |
| Height [ h ] | 19.29 mm |
| Pitch | 7.62 mm |
| Height (without solder pin) | 14.29 mm |
| Solder pin [P] | 5 mm |
| Pin spacing | 7.62 mm |
| Pin dimensions | 0.8 x 1 mm |
Dimensions for PCB design
| Hole diameter | 1.3 mm |
| Pin spacing | 7.62 mm |
Packaging information
| Type of packaging | packed in cardboard |
| Pieces per package | 50 |
| Denomination packing units | Pcs. |
General product information
| Type of note | Notes on operation |
| Note | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (dependent on the derating curve) |
Air clearances and creepage distances
| Clearances and creepage distances | IEC 60664-1:2007-04 |
| Specification | IEC 60664-1:2007-04 |
| Minimum clearance - inhomogeneous field (III/3) | 5.5 mm |
| Minimum clearance - inhomogeneous field (III/2) | 5.5 mm |
| Minimum clearance - inhomogeneous field (II/2) | 5.5 mm |
| Minimum creepage distance value (III/3) | 8 mm |
| Minimum creepage distance value (III/2) | 5.5 mm |
| Minimum creepage distance value (II/2) | 5.5 mm |
Durability tests (B)
| Insulation resistance, neighboring positions | > 5 MΩ |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
