Official DistributorSKU
MPN
MSTB 2,5 HC/ 3-G-5,08
Weight
0.001 kg
Series MSTB

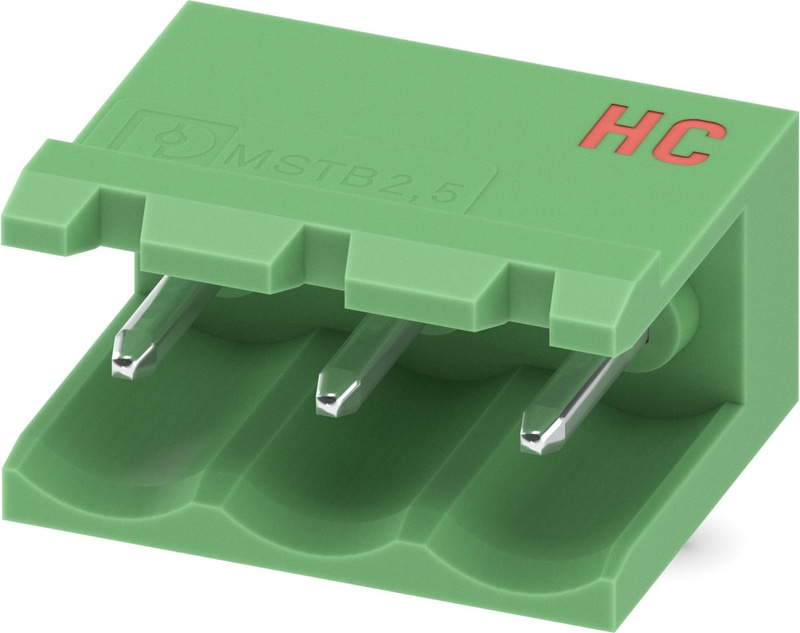

MSTB 2,5 HC/ 3-G-5,08 - PCB header
PCB headers, nominal cross section: 2.5 mm2, color: green, nominal current: 16 A (see derating curve), rated voltage (III/2): 320 V, contact surface: Tin, contact connection type: Pin, number of potentials: 3, number of rows: 1, number of positions: 3, number of connections: 3, product range: MSTB 2,5 HC/..-G, pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.23 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5 HC, Pin connector pattern alignment: Standard, locking: without, mounting: without, type of packaging: packed in cardboard
- Well-known mounting principle allows worldwide use
- Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
MSTB
The Phoenix Contact MSTB Series is a line of pluggable PCB connectors designed for reliable and efficient electrical connections in various electronic applications. These connectors are part of the COMBICON product family and are engineered to provide secure and durable connections between printed circuit boards and external wiring.
Key Features:
- ✅ Screw Connection with Tension Sleeve: The MSTB Series utilizes a screw connection method with a tension sleeve, ensuring a secure and vibration-resistant connection.
- ✅ Various Positions and Pitches: Available in multiple configurations, the MSTB Series offers different numbers of positions and pitches to accommodate diverse application requirements.
- ✅ High Current and Voltage Ratings: With a nominal current rating of up to 12 A and a nominal voltage rating of up to 320 V, these connectors are suitable for a wide range of electrical applications.
- ✅ Durable Materials: Constructed with high-quality materials, including a polyamide insulating housing and tin-plated copper alloy contacts, the MSTB Series ensures long-lasting performance.
Technical Specifications
Product properties
| Product family | MSTB 2,5 HC/..-G |
| Product line | COMBICON Connectors M |
| Number of Positions | 3 |
| Pitch | 5.08 mm |
| Number of Connections | 3 |
| Number of rows | 1 |
| Number of potentials | 3 |
| Mounting flange | without |
| Pin layout | Linear pinning |
| Solder pins per potential | 1 |
Electrical properties
| Nominal current IN | 16 A (see derating curve) |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 320 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated surge voltage (III/2) | 4 kV |
| Rated voltage (II/2) | 630 V |
| Rated surge voltage (II/2) | 4 kV |
Mounting
| Mounting Type | Wave soldering |
| Pin layout | Linear pinning |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface contact area (top layer) | Tin (3 - 5 µm Sn) |
| Metal surface contact area (middle layer) | Nickel (1.3 - 3 µm Ni) |
| Metal surface soldering area (top layer) | Tin (3 - 5 µm Sn) |
| Metal surface soldering area (middle layer) | Nickel (1.3 - 3 µm Ni) |
Material data - housing
| Color (Housing) | green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Notes
| Notes on operation | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
Dimensions
| Pitch | 5.08 mm |
| Width [w] | 15.24 mm |
| Height [h] | 11.8 mm |
| Length [l] | 12 mm |
| Installed height | 8.57 mm |
| Solder pin length [P] | 3.23 mm |
| Pin dimensions | 1 x 1 mm |
PCB design
| Hole diameter | 1.4 mm |
Air clearances and creepage distances |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 320 V |
| Rated surge voltage (III/3) | 4 kV |
| minimum clearance value - non-homogenous field (III/3) | 3 mm |
| minimum creepage distance (III/3) | 4 mm |
| Rated insulation voltage (III/2) | 320 V |
| Rated surge voltage (III/2) | 4 kV |
| minimum clearance value - non-homogenous field (III/2) | 3 mm |
| minimum creepage distance (III/2) | 3 mm |
| Rated insulation voltage (II/2) | 630 V |
| Rated surge voltage (II/2) | 4 kV |
| minimum clearance value - non-homogenous field (II/2) | 3 mm |
| minimum creepage distance (II/2) | 3.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C (dependent on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
