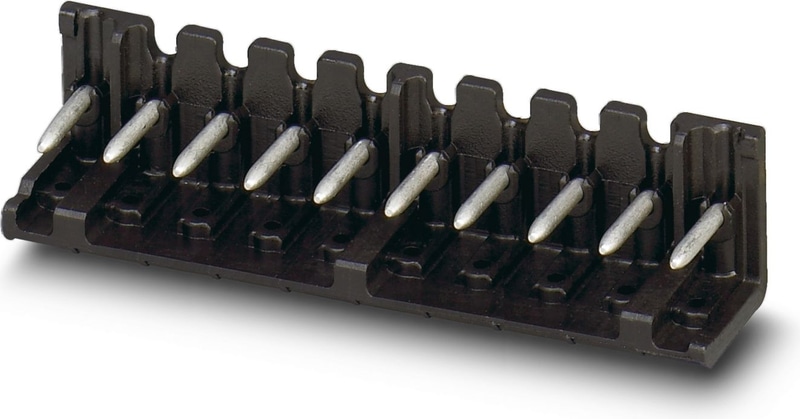

The figure shows a 10-position version of the product
Official DistributorSKU
MPN
PST 1,3/ 5-LH-5,0
Weight
0.002 kg
This product is Not Cancellable/Not Returnable
Series PST
PST 1,3/ 5-LH-5,0 - Pin strip
Pin strip, color: black, contact surface: Tin, number of positions: 5, product range: PST 1,3/..-LH, pitch: 5 mm, pin layout: Linear pinning, solder pin [P]: 3.5 mm, type of packaging: packed in cardboard, Specifically for PT 2,5/..-PVH
Technical Specifications
Product properties
| Product family | PST 1,3/..-LH |
| Type | Pin strip |
| Number of Positions | 5 |
| Pitch | 5 mm |
| Mounting flange | without |
| Pin layout | Linear pinning |
Electrical properties
| Maximum Load Current | 13.5 A (depends on the plug used) |
| Rated voltage (II/2) | 400 V |
| Rated voltage (III/2) | 400 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
Mounting
| Mounting Type | THR soldering |
| Pin layout | Linear pinning |
Material specifications
| Color | black |
| Flammability rating according to UL 94 | V0 |
| Insulating material group | IIIb |
| Insulating material | PA |
| Contact surface | Tin Sn |
| Contact surface material | Sn |
Dimensions
| Width | 24.86 mm |
| Height | 14.7 mm |
| Installed height | 11.2 mm |
| Length of the solder pin | 3.5 mm |
| Length | 1.8 mm |
| Length of the solder pin | 3.5 mm |
| Hole diameter | 1.5 mm |
| Pitch | 5 mm |
Packaging specifications
| Type of packaging | packed in cardboard |
