Official DistributorBy ABB
SKU
MPN
2CDS272339R0587
Weight
0.269 kg

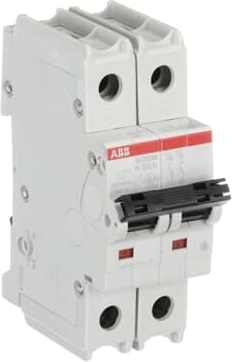

SU202ML-K60 Miniature Circuit Breaker SU202ML-K60 Miniature Circuit Breaker K-Char., 10kA, 60A, 2P
Technical Specifications
Technical
| Standards | CSA 22.2 No. 5 |
| Standards | IEC/EN 60947-2 |
| Standards | UL 489 |
| Tripping characteristic | K |
| Rated Operational Voltage | acc. to IEC 60898-1 400 V |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 400 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 60 A |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V) 15 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 7.5 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Power Loss | 8.7 W |
| Power Loss | at Rated Operating Conditions per Pole 2.9 W |
| Energy Limiting Class | 3 |
| Number of Protected Poles | 2 |
| Number of Poles | 2 |
| Overvoltage category | III |
| Accessories Available | Yes |
| Connecting Capacity | Flexible 0.75 ... 25 mm² |
| Connecting Capacity | Rigid 0.75 ... 35 mm² |
| Terminal Type | Double Clamp |
Technical UL/CSA
| Interrupting Rating acc. to UL489 | (240 V AC) 14 kA |
| Interrupting Rating acc. to UL489 | (96 V DC) 14 kA |
Dimensions
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.24 kg |
| Built-In Depth (t2) | 69 mm |
Installation
| Instructions and Manuals | 2CDS207104P0001 |
