MS495-90
Official DistributorBy ABB
SKU
ABBMS49590
MPN
1SAM550000R1009
Weight
2.236 kg

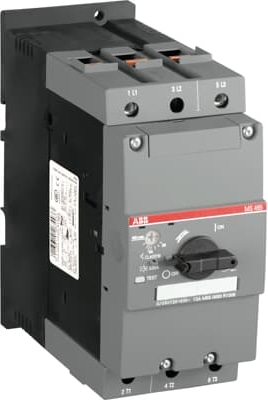

The MS495-90 manual motor starter is a 70 mm width devices with a rated operational current of Ie = 90.0 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 25 kA at 400 VAC and the trip class 10. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. The handle is lockable to protect against unauthorized changes. Auxiliary contacts, signalling contacts, undervoltage releases and shunt trips are available as accessory.
Technical Specifications
Dimensions
| Product Net Width | 70 mm |
| Product Net Height | 165 mm |
| Product Net Depth / Length | 174 mm |
| Product Net Weight | 2.28 kg |
Technical
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 100 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (440 V AC) 20 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V AC) 4 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (690 V AC) 3 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 100 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V AC) 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V AC) 8 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (690 V AC) 5 kA |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1170 A |
| Setting range | 70 ... 90 A |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 45 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Operational Voltage | Main Circuit 450 V DC |
| Rated Operational Current (Ie) | 90 A |
| Rated Operational Current AC-3 (Ie) | 90 A |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Rated Frequency (f) | Main Circuit 60 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 6 kV |
| Rated Insulation Voltage (Ui) | 690 V |
| Power Loss | at Rated Operating Conditions per Pole 2.9 ... 4.9 W |
| Number of Poles | 3 |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 90 A |
| Degree of Protection | Housing IP20 |
| Degree of Protection | Main Circuit Terminals IP00 |
| Pollution degree | 3 |
| Electrical Durability | 25000 cycle |
| Mechanical Durability | 50000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1x 2.5 ... 50 mm² |
| Connecting Capacity Main Circuit | Flexible with Ferrule 2x 2.5 ... 35 mm² |
| Connecting Capacity Main Circuit | Solid 1/2x 2.5 ... 16 mm² |
| Connecting Capacity Main Circuit | Stranded 1x 10 ... 70 mm² |
| Connecting Capacity Main Circuit | Stranded 2x 10 ... 50 mm² |
| Tightening torque | Main Circuit 4 ... 6 N·m |
| Wire Stripping Length | Main Circuit 17 mm |
| Recommended Screw Driver | Hexagon 4 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | CSA 22.2 No. 14 |
| Standards | IEC/EN 60947-1 |
| Standards | IEC/EN 60947-2 |
| Standards | IEC/EN 60947-4-1 |
| Standards | UL 508 |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 30 Hp |
| Horsepower Rating UL/CSA | (208 V AC) Three Phase 30 Hp |
| Horsepower Rating UL/CSA | (220 ... 240 V AC) Three Phase 30 Hp |
| Horsepower Rating UL/CSA | (440 ... 480 V AC) Three Phase 75 Hp |
| Horsepower Rating UL/CSA | (550 ... 600 V AC) Three Phase 100 Hp |
| General Use Rating UL/CSA | (600 V AC) 90 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1x 10-2/0 AWG |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 10-1/0 AWG |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1x 10-2/0 AWG |
| Connecting Capacity Main Circuit UL/CSA | Stranded 1/2x 10-1/0 AWG |
| Tightening Torque UL/CSA | Main Circuit 35 ... 53 in·lb |
