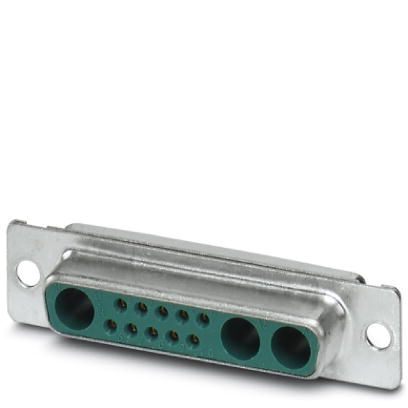

D-SUB combination contact insert - VS-25-BU-DSUB-3P-10S
D-SUB contact insert, shell size 3, with ten signal contacts with solder cup, straight, accommodation for three combined contacts, type of contact socket, fixing with a 3 mm hole, for panel mounting frame and sleeve housing VS-25-...
Technical Specifications
Mechanical characteristics
| Connection Method | Solder cup |
| Overvoltage category | III |
| AWG solid max. | 20 |
| Degree of pollution | 2 |
| Conductor Cross Section | 0.5 mm² |
| Weight | 10.12 g |
| Type | D-SUB 15 |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient Temperature (Operation) | -55 °C ... 130 °C |
Material data
| Contact Material | Copper alloy |
| Contact carrier material | PBT-GF |
| Housing Material | Steel, tin-plated |
| Width | 14.5 mm |
| Height | 12.93 mm |
| Length | 53.42 mm |
| Mounting Type | Screw mounting |
Electrical characteristics
| Number of Positions | 13 |
| Rated current | 5 A (at 20 °C (signal contacts)) |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Rated voltage (III/3) | 250 V |
| Test voltage | 1200 V |
| Insulation resistance | ≥ 5 GΩ |
| Insertion/withdrawal cycles | ≥ 200 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
1655470 - POWER contact, for D-SUB combination inserts, screw connection, socket, straight, rated current 20 A, gold-plated
VS-BU-KX-50-RG178, Coaxial contact, for D-SUB combination inserts, solder cup, socket, straight, for cable RG -178, gold-plated
VS-BU-KX-50-RG174, Coaxial contact, for D-SUB combination inserts, solder cup, socket, straight, for cable RG 174, gold-plated
1655577 - Coaxial contact, for D-SUB combination inserts, solder cup, pin, straight, for cable RG 58, gold-plated
1655616 - Coaxial contact, for D-SUB combination inserts, solder cup, socket, straight, for cable RG 179/187, gold-plated
1688256 - Power contacts, for D-SUB combination inserts, socket, solder cup, straight, rated current 20 A, gold-plated
1688272 - Power contacts, for D-SUB combination inserts, socket, solder cup, straight, rated current 40 A, gold-plated
1419719 - D-SUB sleeve housings, degree of protection: IP20, material: ABS, metal-plated, cable outlet: straight, housing size: 3, color: Bare metallic
1419721 - D-SUB sleeve housings, degree of protection: IP20, material: ABS, metal-plated, cable outlet: angled, housing size: 3, color: Bare metallic
1419727 - D-SUB sleeve housings, degree of protection: IP20, material: Zinc die-cast, cable outlet: straight, housing size: 3, color: Bare metallic
