1689323
Official DistributorSKU
PHX1689323
MPN
VS-PSC 1,5/5-M PE
Weight
0.008 kg
Series VS-PSC

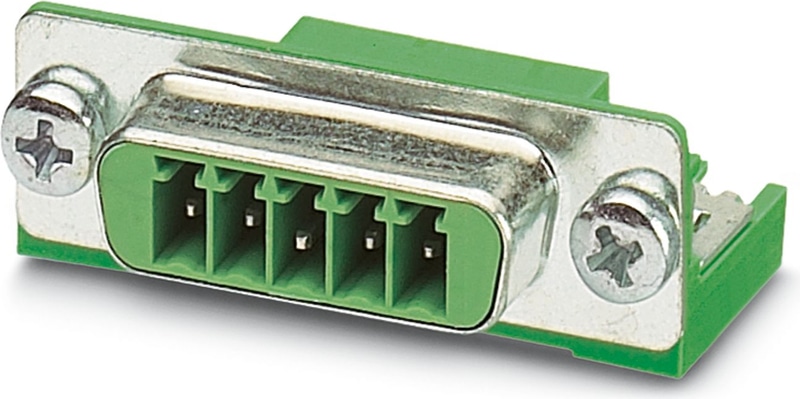

VS-PSC 1,5/5-M PE - Contact insert
POWER-SUBCON header, for mounting side, 5-pos., with capacitive ground connection, shielded, color: green
Documents
Technical Specifications
Notes
| Notes on operation | Only actuate MINI COMBICON connectors when under no load condition. If for operating reasons small loads must be switched, experimental values are available upon request. |
Product properties
| Application | leading PE contact |
| Type | 15 |
| Number of Positions | 5 |
| Type | Male |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |
| Rated current | 8 A |
| Contact resistance | 3 mΩ |
| Insulation resistance | 1 TΩ |
| Transmission medium | Copper |
Connection data
| Connection Method | PCB connection |
Dimensions
| Width | 39.1 mm |
| Height | 13.7 mm |
| Length | 20.8 mm |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact Material | Copper alloy |
| Contact surface material | tin-plated |
| Contact carrier material | PA |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C |
Mounting
| Mounting Type | Threads |
Why Proax for Phoenix Contact 1689323?
Proax is an authorized distributor of Phoenix Contact 1689323 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
