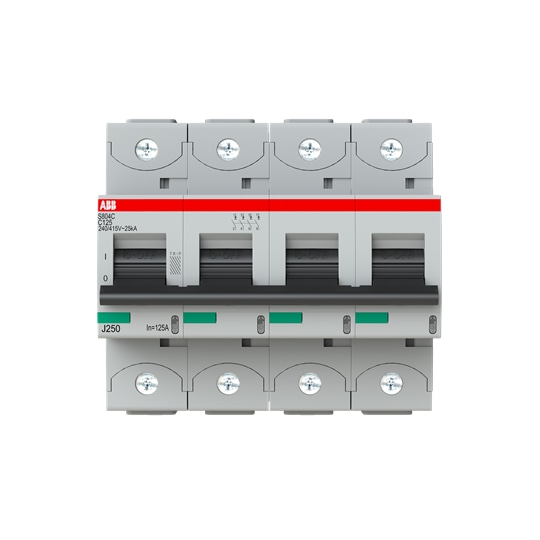

The S804C-C125 is a 4-pole High Performance Circuit breaker with C-characteristic, with cage terminal and a rated current of 125 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S804C-C125 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S804C-C125 more comfortable. Due to the fast arc extinction of S804C-C125 your application will be secured.
Technical Specifications
Technical
| Standards | IEC/EN 60947-2, IEC/EN 60898-1, UL 1077 |
| Tripping characteristic | C |
| Rated Voltage (Ur) | acc. to IEC 60947-2 440 V AC, acc. to IEC 60947-2 500 V DC, acc. to IEC 60898-1 400 V AC |
| Rated Operational Voltage | acc. to IEC 60947-2 440 V AC, acc. to IEC 60947-2 500 V DC, acc. to IEC 60898-1 400 V AC |
| Operational Voltage | Maximum 230/400 V AC, Minimum 12 V AC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 125 A |
| Rated Operational Current (Ie) | 125 A |
| Rated Short-Circuit Capacity | (400 V) 15 kA, (230 V) 15 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (240 / 415 V AC) 25 kA, (254 / 440 V AC) 15 kA, (500 V DC) 10 kA, (230 V) 25 kA, (400 V) 25 kA |
| Rated Conditional Short-Circuit Current (Inc) | (230 V) 25 kA, (400 V) 25 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (240 / 415 V AC) 18 kA, (254 / 440 V AC) 10 kA, (500 V DC) 10 kA |
| Frequency (f) | 50 / 60 Hz |
| Rated Frequency (f) | 50...60 Hz |
| Power Loss | 37.6 W, at Rated Operating Conditions per Pole 9.4 W |
| Contact Position Indication | ON / OFF / TRIP |
| Energy Limiting Class | 3 |
| Electrical Endurance | 4000 cycle |
| Mechanical Endurance | 6000 cycle |
| Number of Poles | 4 |
| Number of Protected Poles | 4 |
| Overvoltage category | IV |
| Tightening torque | 3.5 N·m, 31 in·lb |
| Release Type | C |
| Actuator Marking | I / O |
| Housing Material | Insulation group I, RAL 7035 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | Any |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | Connection from top and bottom, Connecting with CU only, IP40 in enclosure with cover, Cage terminal with captive screw |
| Connecting Capacity | Flexible 0...50 mm², Rigid 0...70 mm² |
| Terminal Type | Screw Terminals |
Environmental
| Ambient Temperature | -25...60 °C |
| Ambient Air Temperature | Operation -25...60 °C |
| Reference Ambient Air Temperature | acc. to IEC60947-2 30 °C, acc. to EN60898-1 30 °C |
| Degree of Protection | IP20 |
| Pollution degree | 3 |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 2 - 13.2 Hz / 1mm, 13.2 - 100Hz / 0.7g, with load 100% x Ie |
| Resistance to Shock acc. to IEC 60068-2-27 | 5 g, 30 ms |
| RoHS Status | Following EU Directive 2011/65/EU |
Dimensions
| Width in Number of Modular Spacings | 6 |
| Product Net Width | 106 mm |
| Product Net Height | 95 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 980 g |
| Built-In Depth (t2) | 82.5 mm |
