SAC-3P-M12MS/0,6-PUR/C-1L-S - Sensor/actuator cable

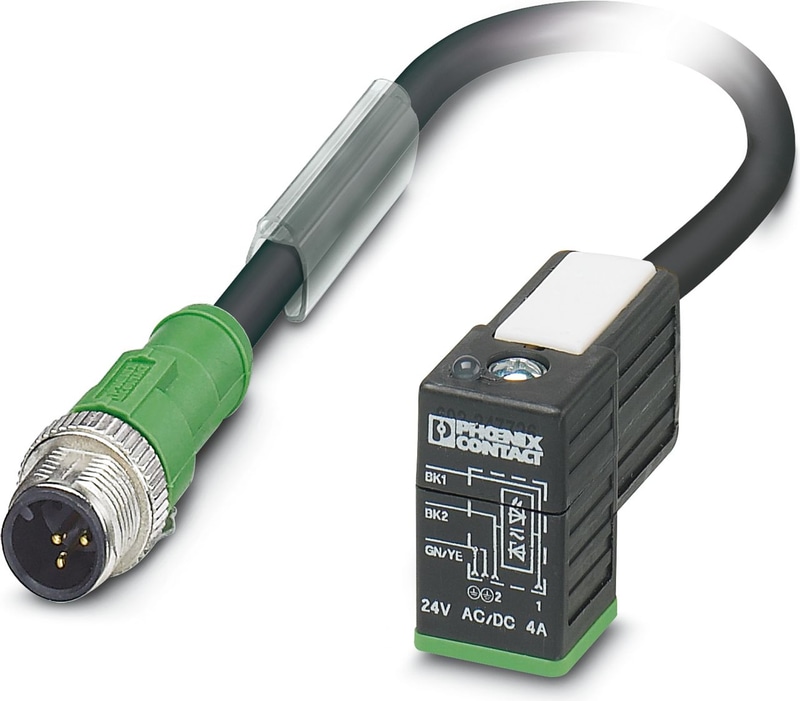

Sensor/actuator cable, 3-position, PUR halogen-free, black-gray RAL 7021, Plug straight M12, coding: A, with 1 LED, on Valve connector C (8 mm), with 1 LED, Wiring: Z diode, cable length: 0.6 m
SAC-3P
The Phoenix Contact SAC-3P Series comprises sensor/actuator cables designed for reliable signal transmission in industrial automation applications. These 3-position cables are available in various configurations to accommodate different connectivity requirements.
Key Features:
Connector Types: The series offers cables with M8 and M12 connectors, available in both straight and angled orientations, providing flexibility for diverse installation scenarios.
Cable Materials: Cables are constructed with halogen-free polyurethane (PUR) or polyvinyl chloride (PVC) jackets, ensuring durability and resistance to environmental factors.
Coding: Equipped with A-coding, these cables are standardized for sensor/actuator connections, ensuring compatibility across various devices.
Technical Specifications
Product properties
| Number of Positions | 3 |
| No. of cable outlets | 1 |
| Shielded | no |
| Coding | A |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Seal material | TPU |
| Material housing valve plug | PBT |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Contact Material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Contact Material | CuSn |
| Valve plug contact insert material | PBT |
| Contact surface material | Ag |
Electrical properties
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 24 V |
| Nominal current IN | 4 A |
Signaling
| Status display | 1 LED |
| Status display present | Yes |
Connection 1
| Type | Plug straight M12 |
| Number of Positions | 3 |
| Coding type | A |
Connection 2
| Type | Valve connector C (8 mm) |
| Number of Positions | 3 |
| Material | CuSn (Contact) |
| Material | Ag (Contact surface) |
| Material | PBT (Contact carriers) |
| Material | PBT (Housing) |
Cable/line
| Cable Length | 0.6 m |
PUR halogen-free black [PUR]
| Cable weight | 30 kg/km |
| UL AWM style | 20549 |
| Number of Positions | 3 |
| Shielded | no |
| Cable Type | PUR halogen-free black [PUR] |
| Conductor structure signal line | 28x 0.15 mm |
| AWG Signal Line | 20 |
| Conductor Cross Section | 3x 0.5 mm² |
| Wire diameter incl. insulation | 1.5 mm ±0.05 mm (Signal line) |
| External Cable Diameter | 4.50 mm ±0.2 mm |
| Outer sheath, material | PUR |
| External sheath, color | black-gray RAL 7021 |
| Conductor material | Bare Cu litz wires |
| Material wire insulation | PP |
| Single wire, color | black 1, black 2, green/yellow |
| Overall twist | 3 wires, twisted |
| Max. conductor resistance | 39 Ω/km (at 20 °C) |
| Insulation resistance | min. 20 MΩ*km |
| Nominal voltage, cable | ≤ 300 V |
| Test voltage | ≥ 1200 V |
| Minimum bending radius, fixed installation | 5 x D |
| Minimum bending radius, flexible installation | 10 x D |
| Smallest bending radius, fixed installation | 22.5 mm |
| Smallest bending radius, movable installation | 45 mm |
| Max. bending cycles | 15000000 |
| Halogen-free | in accordance with DIN VDE 0472 part 815 |
| Flame resistance | according to DIN VDE 0482 |
| Flame resistance | According to DIN EN 50265-2-1 |
| Resistance to Oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | largely oil-resistant |
| Other resistance | partly UV-resistant (in accordance with DIN EN ISO 4892-2-A) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable, flexible installation) |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (valve plug) |
| Ambient Temperature (Operation) | -30 °C ... 70 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -5 °C ... 70 °C (Cable, flexible installation) |
